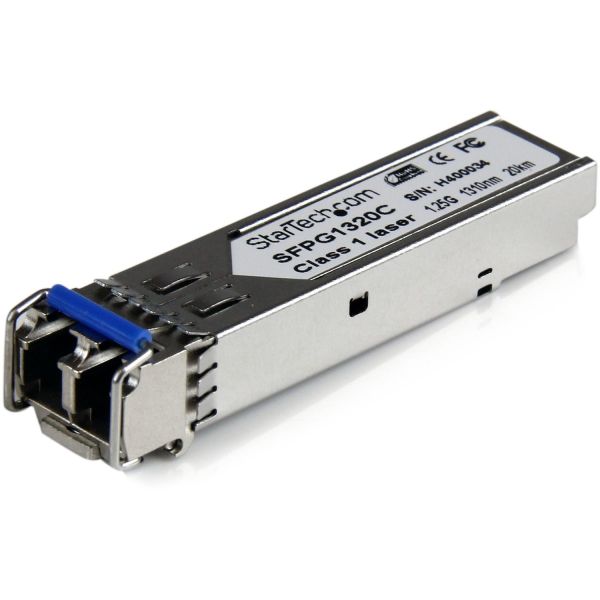

StarTech.com 1.25 Gbps Gigabit 1310nm GBIC SM LC Fiber SFP Transceiver w/ DDM - 20km

Marketing Information

The SFPG1320C is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LH compliant networks, with a maximum distance of up to 20 km (12.4 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 20 km (12.4 mi)
• MTBF: 2,722,277 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes...

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SFPG1320C
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 1.25 Gbps Gigabit 1310nm GBIC SM LC Fiber SFP Transceiver w/ DDM - 20km
Packaged Quantity: 1 Each
Product Type: SFP (mini-GBIC)
Technical Information
Application/Usage:

• Data Networking
• Optical Network

Interfaces/Ports
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-LH Network
Media & Performance
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: 1.25 Gigabit Ethernet
Network Technology: 1000Base-LH
Physical Characteristics
Form Factor:

• Hot-pluggable
• Hot-swappable

Height: 10.2 mm
Width: 12.7 mm
Depth: 61 mm
Weight (Approximate): 19.8 g
Miscellaneous
Additional Information:

• Replacing defective or damaged SFPs/Mini GBICs in MSA or Cisco compliant equipment
• Equipped with an industry standard single-mode LC interface, this module can extend your network connectivity up to 20 km

Compatibility:

• MSA Compliant

Cisco Firepower Switches:

• IE2000
• IE4000
• C9300
• IE3000

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
