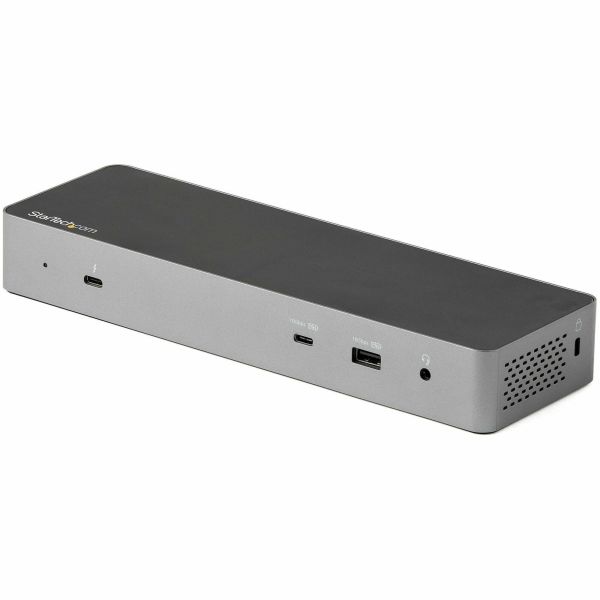

StarTech.com Docking Station

Marketing Information

A high-performance Thunderbolt™ 3 Certified docking station with USB Type-C® compatibility featuring dual monitor 4K 60Hz DSC support from either Dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, gigabit Ethernet (PXE Boot/Wake-on-LAN) & headset ports.

Flexible Dual Display Outputs

This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:

DisplayPort + DisplayPort HDMI + HDMI DisplayPort + HDMI

Resolutions and video outputs are host-dependent.

Thunderbolt 3... or 4 Laptop

Single Monitor

Dual Monitors Intel Laptops with 11th Gen or Later

8K 30Hz / 5K 60Hz / 4K 60Hz 4K 60Hz Intel Laptops with 10th Gen or Earlier

5K 60Hz / 4K 60Hz 4K 60Hz Apple M1 & M2 Pro/Max MacBooks

5K 60Hz / 4K 60Hz 4K 60Hz Apple M1 & M2 MacBooks

5K 60Hz / 4K 60Hz Mirrored Display Only Intel Based Macbook's with Thunderbolt 3

5K 60Hz / 4K 60Hz 4K 60Hz

USB-C Laptop (No Thunderbolt)

Single Monitor

Dual Monitors Laptops with Intel 10th Gen or Later (Requires DP 1.4 Alt Mode)

4K 60Hz 4K 30Hz Laptops with DP 1.2 Alt Mode

4K 30Hz 1080p 60Hz

More Downstream USB Ports

Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:

Front Facing:

• 1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging
• 1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging

Back Facing:

• 2x USB 3.2 Gen 1 Type-A (5 Gbps)
• 1x USB 3.2 Gen 2 Type-C (10 Gbps)

Easy to Set Up & Manage

This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: To setup and save custom windows layouts.

• Mac Address Pass-Through Utility: To improve network security.

• USB Event Monitoring Utility: To track and log connected USB devices

• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

TB3CDK2DHUE is backed by a StarTech.com three-year warranty and free lifetime technical support.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: TB3CDK2DHUE
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Workstation
• Notebook
• Monitor

Interfaces/Ports
Host Interface:

• USB Type C
• Thunderbolt 3

Audio Line Out: Yes
USB Type-C: Yes
USB Type-C Detail: 2 x USB-C (USB 3.1 Gen 2)
Network (RJ-45): Yes
DisplayPort: Yes
HDMI: Yes
Software
Operating System Supported:

• Windows 11
• Windows 10
• Windows 8
• Mac OS X 13.0 Ventura
• Mac OS X 12.0 Monterey
• Mac OS X 11.0 Big Sur
• Mac OS X 10.15 Catalina
• Mac OS X 10.14 Mojave
• Ubuntu 18.04
• Ubuntu 20.04

Power Description
Maximum Power Supply Wattage: 96 W
Physical Characteristics
Height: 30.5 mm
Width: 221 mm
Depth: 78.7 mm
Weight (Approximate): 249.5 g
Miscellaneous
Package Contents:

• Docking Station
• Universal Power Adapter
• Power Cords (UK, EU)
• Thunderbolt 3 Host Cable (80 cm)
• User Manual

Kensington Security Slot: Yes
Compatibility:

• HP Notebooks
• Lenovo ThinkPad Notebooks
• Dell XPS Notebooks

Apple Products:

• MacBook Air
• MacBook Pro

Brand Compatibility:

• Apple
• Dell
• HP
• Lenovo

Warranty
Limited Warranty: 3 Year
