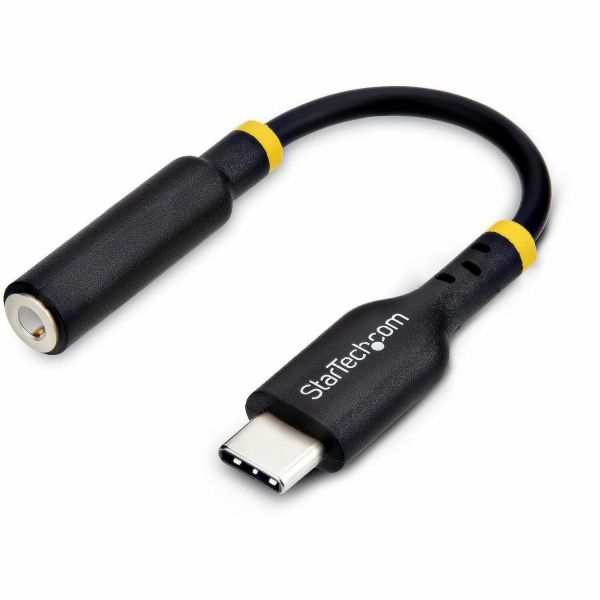

StarTech.com Mini-phone/USB-C Audio Cable

Marketing Information

Connect wired headphones or earphones to a USB Type-C-enabled device and enjoy high-fidelity audio output with this USB-C to 3.5mm audio adapter. The built-in 32-bit DAC supports stereo sound and microphone functionality via the TRRS jack for clear and immersive audio.

Superior Sound Quality

Experience excellent sound quality supporting audio ranges from 44.1 to 384kHz and 16, 24, and 32-bit sample rates, delivering a 105dBA signal-to-noise ratio for crisp and detailed output. The stereo ADC features a 94dB SNR for microphone input, with 48kHz and 16-bit sampling, all powered by the Realtek ALC4030U chipset.

Wide Compatibility

This versatile aux audio adapter is universally compatible with USB-C and Thunderbolt devices, including Windows, macOS, and Linux computers, as well as phones and tablets running iOS or Android. It supports wired headphones and headsets (including models with in-line controls), making it an ideal solution for using existing audio gear and eliminating the need for Bluetooth audio solutions.

Sleek and Portable Design

The compact, sleek adapter measures just 5 inches (127mm) and features a flexible and durable TPE jacket with a soft-touch finish. Use this adapter cable on the go or at a workstation for audio playback, recording, or calls.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: USBCAUDIO2
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Mini-phone/USB-C Audio Cable
Packaged Quantity: 1
Product Type: Audio Cable
Technical Information
Cable Type: Mini-phone/USB-C
Cable Length: 12.70 cm
Connector Type on First End: USB 2.0 Type C - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 24-pin USB 2.0 Type C - Male
Connector Type on Second End: Mini-phone Stereo Audio - Female
Connector Gender on Second End: Female
Connector on Second End Details: 1 x Mini-phone Stereo Audio - Female
Device Supported:

• Headphone
• Headset
• Notebook
• Phone
• Tablet
• Microphone
• Computer
• Sound Card
• Earphone
• Smartphone
• Audio Device

Data Transfer Rate: 480 Mbit/s
Features:

• Flexible
• Durable

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Rubber
Jacket Material: Thermoplastic Elastomer (TPE)
Height: 7.6 mm
Width: 12.7 mm
Weight (Approximate): 8.5 g
Miscellaneous
Operating System Compatibility:

• Windows 11
• windows 11 (ARM)
• Windows 10
• mac OS 15 Sequoia
• macOS Sonoma 14.0
• macOS Ventura 13.0
• iOS
• Android
• iPadOS

Warranty
Limited Warranty: 2 Year
