StarTech.com Docking Station

Marketing Information

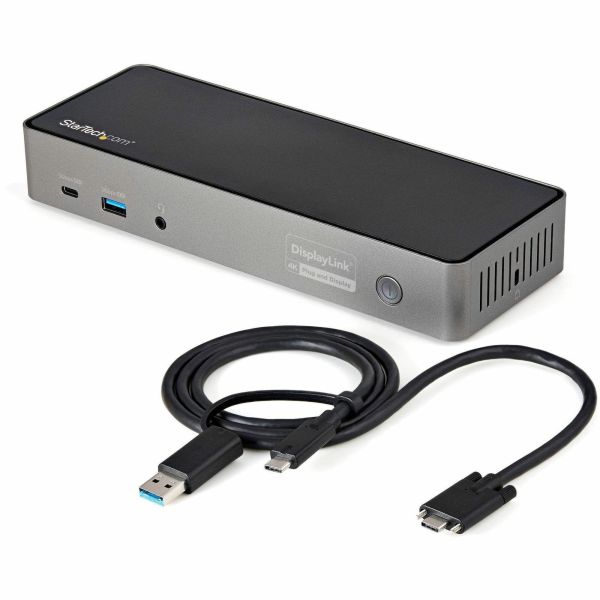

This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery. Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included.

HDMI & DisplayPort for Triple Monitor Outputs

This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HDR support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces,... on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup.

Host Display Output USB-C Gen 1 or 2 (with DP 1.4) Triple Display - 3x 4K 60Hz Thunderbolt 3 (DP 1.4 Supported) Triple Display - 3x 4K 60Hz

USB-C Gen 1 (with DP 1.2)

Triple Display - 2x 4K 60Hz; 1x 4K 30Hz

USB-A or USB-C (No DP Alt Mode) Dual Display - 2x 4K 60Hz

Power & Charge with 85W Power Delivery

Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 85 watt PD Higher power delivery, MORE than other USB-C 10G Triple monitor docks. Charge smartphones and other devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

Plenty of Downstream USB Ports

This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals.

• 1x USB-C 3.2 Gen 2 (10 Gbps)
• 1x USB-A 3.2 Gen 2 (10 Gbps)
• 1x USB-C 3.2 Gen 1 (5 Gbps)
• 3x USB-A 3.2 Gen 1 (5 Gbps)

Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.

Additional Security Features

This USB-C/USB-A docking station comes with plenty of security features such as a screw-lock host port which includes a USB-IF Certified 1m 2-in-1 USB-C/USB-A screw-lock cable; a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility

The DK31C3HDPDUE includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat , or e-mail .

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DK31C3HDPDUE
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Notebook
• Workstation

Number of Displays Supported: 3
Screen Mode Supported: 4K
Supported Resolutions: 3840 x 2160
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB 3.1 (3.1 Gen 2) Type C
Total Number of USB Ports: 6
Number of USB Type-A Ports: 4
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C 3.2 Gen 2 (10 Gbps), 1 x USB-C 3.2 Gen 1 (5 Gbps)
Network (RJ-45): Yes
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
HDMI: Yes
Thunderbolt: Yes
Software
Operating System Supported:

• Windows 10
• Windows 11
• Windows 8.1
• Windows 8
• Mac OS X 10.6 Snow Leopard
• Mac OS X 10.12 Sierra
• Mac OS X 10.14 Mojave
• Mac OS X 11.0 Big Sur
• Mac OS X 12.0 Monterey
• Mac OS X 13.0 Ventura
• Ubuntu 18.04
• Ubuntu 20.04
• ChromeOS

Power Description
Maximum Power Supply Wattage: 85 W
Physical Characteristics
Height: 38.1 mm
Width: 83.8 mm
Depth: 233.7 mm
Weight (Approximate): 365.7 g
Miscellaneous
Package Contents:

• Docking Station
• USB-C Screw Lock Cable with USB-A Adapter
• Universal Power Adapter (EU, UK)
• Quick-Start Guide

Kensington Security Slot: Yes
Compatibility: Compatible Products:

• Lenovo X1 Carbon
• Lenovo ThinkPad P Series
• Dell Latitude
• Dell Precision
• Dell XPS 15
• HP Spectre
• HP ZBook
• Apple MacBook Pro



Brand Compatibility:

• Lenovo
• Dell
• HP
• Apple

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 2 Year
