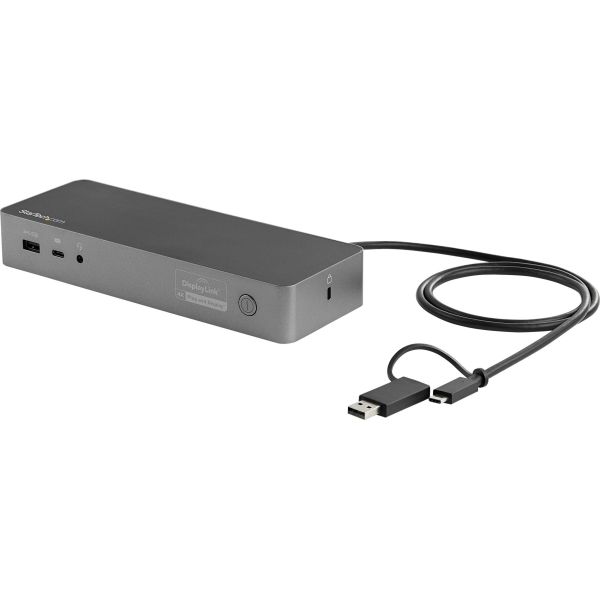

StarTech.com USB-C Docking Station with USB-A Laptop Compatibility - 100W PD

Marketing Information

Transition from the legacy USB-A (USB 3.0) to the new USB-C with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 100W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.

The Uniquely Universal Host Cable

The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.

100W Power Delivery

For high performance laptops that require more charging power, the dock powers and charges your laptop as you work with 100W PD fo...r faster charging, using the 170W power adapter - all through a single cable.

Flexible Monitor Connections

This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.

• Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz

• Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz

• Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz

• Single 5K DisplayPort* | Up to 5120 Ã- 2880

^{*Requires monitor support for 5K using two DP ports}

Certified for Universal Compatibility & Reliability

This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.

Easy and Convenient Setup

For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).

The Connections You Need

Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.

For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility

The DK30C2DPEPUE, includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DK30C2DPEPUE
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB-C Docking Station with USB-A Laptop Compatibility - 100W PD
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook
Interfaces/Ports
Host Interface: USB Type C
Audio Line Out: Yes
Total Number of USB Ports: 4
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C
Network (RJ-45): Yes
DisplayPort: Yes
HDMI: Yes
Software
Operating System Supported: ChromeOS 55+
Power Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Height: 30.5 mm
Width: 78.7 mm
Depth: 221 mm
Weight (Approximate): 280.7 g
Miscellaneous
Package Contents:

• USB-C Docking Station with USB-A Laptop Compatibility - 100W PD
• 1 x USB-C Cable (with Attached USB-C to USB-A Adapter)
• 1 x Universal Power Adapter (UK, EU)
• 1 x Quick-Start Guide

Kensington Security Slot: Yes
Compatibility:

• Lenovo X1
• Lenovo ThinkPad P Series
• Dell Latitude Notebooks
• Dell Precision Notebooks
• Dell XPS 15 Notebooks
• HP Spectre Notebooks
• HP ZBook Notebooks
• Apple MacBook Pro 16

Brand Compatibility:

• Apple
• Dell
• HP
• Lenovo

Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
