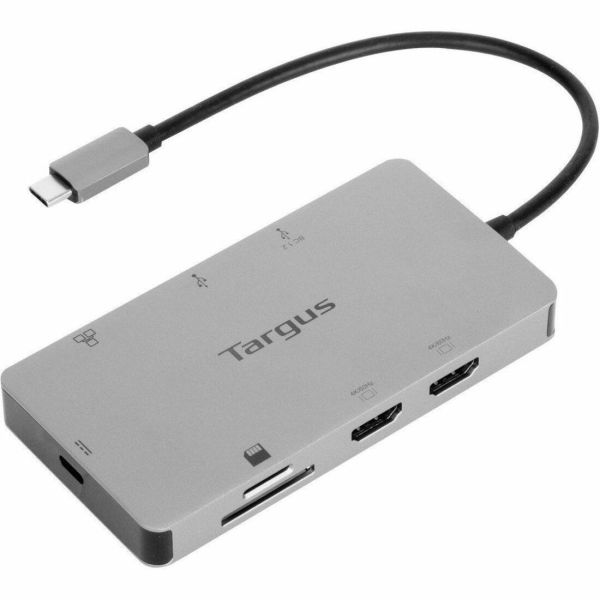

Targus USB-C Dual HDMI 4K Docking Station with 100W PD Pass-Thru

Marketing Information

Turn your laptop into a dual video workstation with the compact USB-C Alt. Mode to Dual HDMI 4K Docking Station with 100W PD Pass-Thru. Connect your USB-C-enabled devices to two HDMI monitors, while also connecting to a Gigabit Ethernet network, and plugging in your key peripherals - like mice, keyboards, flash drives, or hard drives - into the USB-A ports.

Plus, access your data with the SD and Micro SD card reader/writer. You can even keep your laptop charged and powered by connecting the laptop USB-C power adapter to the USB-C port on this dual monitor dock. This dock also provides transfer speeds of up to 5Gbps per port. It supports up to 100W (20V/5A) charging max. Compact and lightweight, it's easy to take it along with you any...where you go.

4K UHD Display

Whether you want to run a presentation on a larger display or use an external display, this USB-C dock adapts USB-C to dual HDMI displays at up to 4K resolution.

Connectivity Made Simple

Enhance your productivity and connect to more with 2 USB-A 3.2 Gen 1 ports (1 fast-charging).

Charge and Power Host Device

With up to 100W Power Delivery pass-thru, this USB-C to dual HDMI dock allows you to power and charge your USB-C laptop or host simply by connecting the laptop's power adapter into the USB-C port. Great for laptops with only one USB-C port.

Perfectly Portable

Slim and light, this USB-C dual monitor dock is perfect for the home, office, or anywhere in between. Great for mobile workers or those in hoteling or hot desking environments.

Plug and Play Simplicity

With no need for additional software, this adapter easily attaches to your USB-C Alt. Mode (including Thunderbolt™ 3) host device (i.e., laptop) to convert USB-C to dual HDMI outputs, connect to a wired network, use more peripherals, and transfer data.

Specifications
Manufacturer: Targus Group International
Manufacturer Part Number: DOCK423EU
Manufacturer Website Address: http://www.targus.com/uk/
Brand Name: Targus
Product Model: DOCK423EU
Product Name: USB-C Dual HDMI 4K Docking Station with 100W PD Pass-Thru
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Mouse
• Notebook
• Monitor
• Keyboard

Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD

Number of Displays Supported: 2
Screen Mode Supported: 4K
Maximum Data Transfer Rate: 640 MB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Number of USB Type-A Ports: 2
Number of USB Type-C Ports: 1
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 (pass-thru only)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of HDMI Ports: 2
HDMI: Yes
USB Power Delivery: 100W
Software
Operating System Supported:

• Windows
• macOS
• iPadOS
• ChromeOS
• Linux

Physical Characteristics
Color Family: Silver
Product Color: Silver
Height: 150 mm
Width: 100 mm
Depth: 30 mm
Weight (Approximate): 130 g
Miscellaneous
Country of Origin: China
Warranty
Limited Warranty: 2 Year
