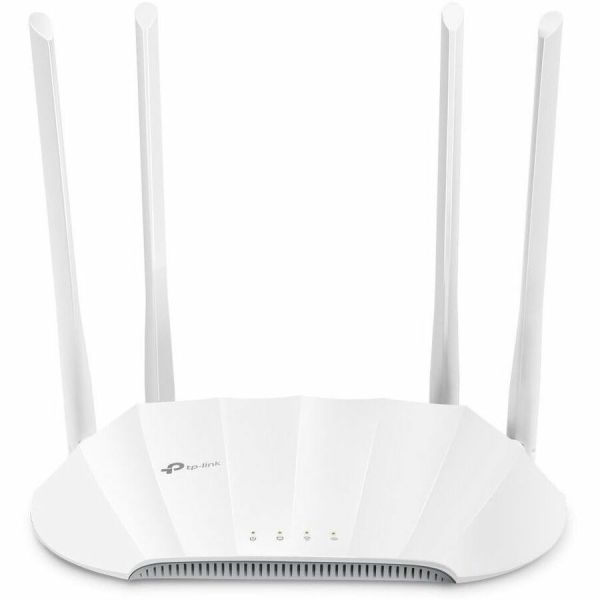

TP-Link AX1800 Gigabit Wi-Fi 6 Access Point

Marketing Information

Advanced Wi-Fi for Better Performance

AX1800 Gigabit Wi-Fi 6 Access Point

TL-WA1801

• Advanced Wi-Fi 6
• Boosted Coverage
• WPA3 Security
• Gigabit Port
• Passive PoE
• Captive Portal
• ...>Multiple Modes

The Advanced Wi-Fi is Upon Us

Wi-Fi 6 (802.11ax) could turn out to be the most significant advancement in Wi-Fi development, delivering a huge boost in speed and total capacity. Mainstream adoption of Wi-Fi 6 is inching ever closer with more and more AX clients available. It's the right time to upgrade your router to the newest generation of Wi-Fi!

Lightning-Fast AX1800 Dual Band Wi-Fi

Upgrade your home or office network with the latest-generation of dual band 802.11ax access point, which offers combined speeds of up to 1800 Mbps and is perfectly suited to serve multiple devices at the same time. The 5GHz band is ideal for Ultra-HD streaming video and online gaming, while the 2.4GHz band is there for all of your everyday Internet needs, like sending emails and browsing the Internet.

Boosted Wi-Fi Coverage

Four external antennas equipped with Beamforming technology concentrate Wi-Fi signals towards your devices to extend reliable Wi-Fi to every corner of your home or office-even over long distances.

WPA3-New Level of Cyber Security

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

Gigabit-Class Wired Performance

The gigabit Ethernet port makes full use of gigabit-class bandwidth provided by a local ISP to ensure reliable network connections. It also provides an ultra-fast connection for wired devices such as PCs, IPTVs, and game consoles, etc.

Deploy Anywhere with Just One Cable

Power over Ethernet (PoE) allows your Ethernet cable to carry electrical power and data simultaneously, making deployment effortless and flexible. An elegant appearance and simple mounting design make it easy to attach the Access Point to any wall or desktop, blending in perfectly with most interior decoration.

Captive Portal Marketing

Captive Portal provides a secure guest network and offers unique marketing opportunities, especially for small businesses like cafes or salons. Utilize a flexibly designed portal page-requiring customers to view an advertisement or accept a set of terms for internet access-to improve brand awareness or deliver marketing messages.

Multi-Mode 4 in 1

Multiple operation modes are supported to give you full flexibility to tailor the Access Point to fit your network's needs.

Access Point Mode (Default Mode)

Extends your existing wired network and makes it wireless, allowing you to connect all of your Wi-Fi devices.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TLWA1801
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-WA1801
Product Name: AX1800 Gigabit Wi-Fi 6 Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Network Band: Dual Band
Frequency Band:

• 2.40 GHz
• 5 GHz

Total Number of Antennas: 4
Number of External Antennas: 4
Wireless Transmission Speed: 1.73 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WPA
• WPA2
• WPA3
• WPA-ENT
• WPA2-ENT
• WPS

Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Network & Communication
Wi-Fi Generation: Wi-Fi 6
Communication Protocols:

• DHCP
• SNMP

Physical Characteristics
Form Factor:

• Wall Mountable
• Desktop

Antenna Form Factor: External
Height: 38.1 mm
Width: 226.1 mm
Depth: 144.8 mm
