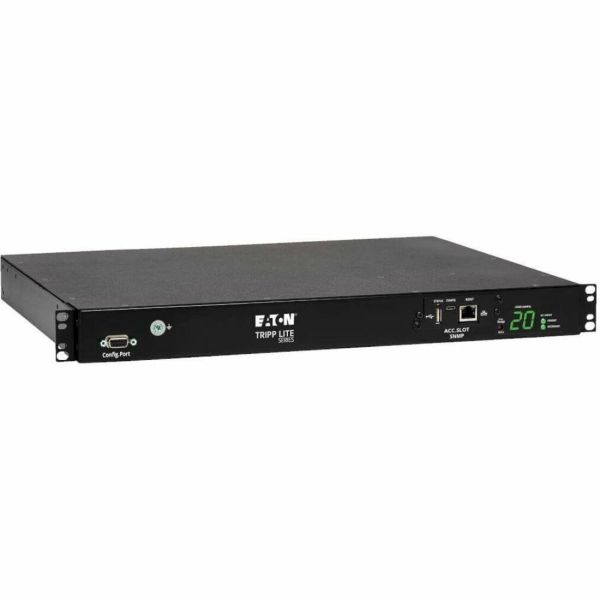

Tripp Lite by Eaton PDUMH20HVATNET PDU Switched ATS 200V - 240V 16A 10 Outlet
£854.17
Limited Stock: Only 0 available
Only 5 left
Tripp Lite by Eaton PDUMH20HVATNET PDU Switched ATS 200V - 240V 16A 10 Outlet
Tripp Lite by Eaton PDUMH20HVATNET PDU Switched ATS 200V - 240V 16A 10 Outlet is available to buy in increments of 1
Categories: PDUs, Default Category
| Product Type | PDU |
|---|---|
| Input Voltage | 230 V AC |
| Output Voltage | 200 V AC/208 V AC/220 V AC/230 V AC/240 V AC |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Brand Name | Tripp Lite by Eaton |
| Receptacle Type | IEC 60320 C13/IEC 60320 C19 |
| TAA Compliant | Yes |
| PDU Type | Switched |
| Mounting Orientation | Vertical |
| Receptacle Detail | 8 x IEC 60320 C13/2 x IEC 60320 C19 |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Alert | Rating Coming Soon |
Description
Marketing Information
Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regar...dless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: PDUMH20HVATNET
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Tripp Lite by Eaton
Product Model: PDUMH20HVATNET
Product Name: PDUMH20HVATNET PDU Switched ATS 200V - 240V 16A 10 Outlet
Product Type: PDU
Technical Information
PDU Type: Switched
Receptacle Type:
Receptacle Detail:
Power Description
Input Voltage: 230 V AC
Output Voltage:
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 1U
Height: 43.7 mm
Width: 439.4 mm
Depth: 375.9 mm
Weight (Approximate): 4.67 kg
Miscellaneous
Additional Information:
TAA Compliant: Yes
Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regar...dless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: PDUMH20HVATNET
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Tripp Lite by Eaton
Product Model: PDUMH20HVATNET
Product Name: PDUMH20HVATNET PDU Switched ATS 200V - 240V 16A 10 Outlet
Product Type: PDU
Technical Information
PDU Type: Switched
Receptacle Type:
- IEC 60320 C13
- IEC 60320 C19
Receptacle Detail:
- 8 x IEC 60320 C13
- 2 x IEC 60320 C19
Power Description
Input Voltage: 230 V AC
Output Voltage:
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 1U
Height: 43.7 mm
Width: 439.4 mm
Depth: 375.9 mm
Weight (Approximate): 4.67 kg
Miscellaneous
Additional Information:
Input Receptacles: 2 x IEC C20
Output Receptacles:
- 2 x IEC C19
- 8 x IEC C13
TAA Compliant: Yes
