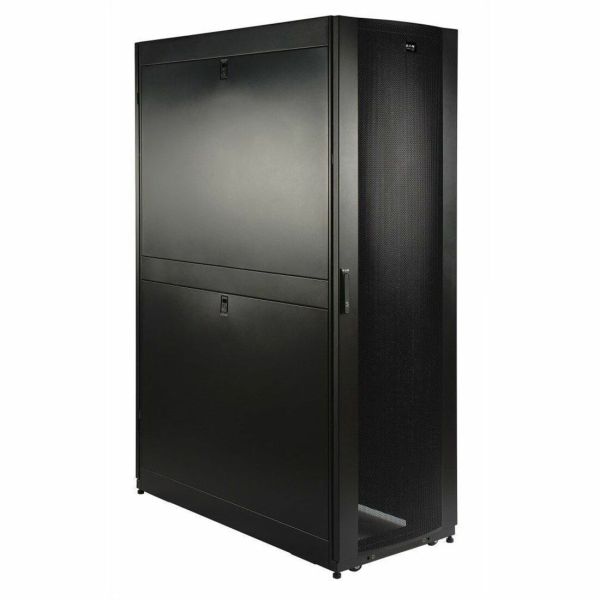

Tripp Lite by Eaton SR42UBDP48 42U Server Rack

Marketing Information

Extra-Deep Server Cabinet Accommodates 42U of Standard-Width Rack Equipment

Designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment, this SmartRack® 42U rack enclosure is 48 inches (1219 millimeters) deep. This allows high-density equipment installations, extra space for cable management, and room for removing hot-swap power supplies from the rear of mounted devices. Constructed from heavy-duty steel with a durable black powder-coated finish, the SR42UBDP48 has a maximum stationary load capacity of 3000 pounds (1361 kilograms) and a maximum rolling load capacity of 2250 pounds (1021 kilograms).

Keeps Important Equipment Secure and Eas...y to Access

The reversible front door, split rear doors and half-size side panels lock securely to help prevent damage, tampering or theft. The doors, side panels and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow from front to rear to keep your equipment cool and functioning at its peak.

Easy Enclosure Deployment and Equipment Installation

This 42U server rack comes fully assembled for quick and easy deployment with pre-installed casters that let you maneuver it over a level, smooth, stable surface and through a standard seven-foot doorway into position, where it can be stabilized by adjusting the levelers. Four mounting rails adjust in quarter-inch increments from four to 42 inches. Two rails also support toolless 0U mounting for quick installation of up to four compatible PDUs and vertical cable managers to help cut down on clutter.

Designed for Baying Multiple Enclosures in a Row

Built-in baying brackets and removable side panels allow the combination of two or more rack cabinets in a row. Center-to-center width can be set at 24 inches (600 millimeters) to match standard data-center floor tiles.

Meets Payment Card Industry Standards

The SR42UBDP48 provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.

Specifications
Manufacturer: Eaton Corporation
Manufacturer Part Number: SR42UBDP48
Manufacturer Website Address: http://www.powerquality.eaton.com/UK/
Brand Name: Tripp Lite by Eaton
Product Line: SmartRack
Product Model: SR42UBDP48
Product Name: SR42UBDP48 42U Server Rack
Product Type: Rack Cabinet
Technical Information
Application/Usage:

• Server
• LAN Switch
• Patch Panel

Physical Characteristics
Form Factor: Floor Standing
Color Family: Black
Product Color: Black Powder Coat
Product Material: Steel
Dynamic/Rolling Weight Capacity: 1021 kg
Static/Stationary Weight Capacity: 1361 kg
Height: 1993.9 mm
Width: 600.2 mm
Depth: 1293.1 mm
Weight (Approximate): 142.88 kg
Rack Height: 42U
Rack Depth: 1219.20 mm
Miscellaneous
Assembly Required: No
