V7 UPS2URM1500DC-NCV7 1500VA/1500W Online Double Conversion UPS 230V
£403.79
Limited Stock: Only 0 available
Only 2 left
V7 UPS2URM1500DC-NCV7 1500VA/1500W Online Double Conversion UPS 230V
V7 UPS2URM1500DC-NCV7 1500VA/1500W Online Double Conversion UPS 230V is available to buy in increments of 1
Categories: General Purpose UPS, Default Category
| Network Management | RS-232 |
|---|---|
| Waveform Type | Pure Sine Wave |
| Backup/Run Time (Half Load) | 9.50 Minute |
| Backup/Run Time (Full Load) | 2.60 Minute |
| AVR | Yes |
| Application/Usage | IT Equipment/Data Center/Mission Critical Equipment |
| Battery Chemistry | Lead Acid |
| Product Type | Double Conversion Online UPS |
| Input Voltage | 230 V AC |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Brand Name | V7 |
| Plug/Connector Type | Schuko |
| Input Voltage Range | 2U |
| Cord Length | 3.05 m |
| Receptacle Type | IEC 60320 C13 |
| Network (RJ-45) | Yes |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.50 kW |
| Product Color | Black |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Alert | Rating Coming Soon |
Description
Marketing Information

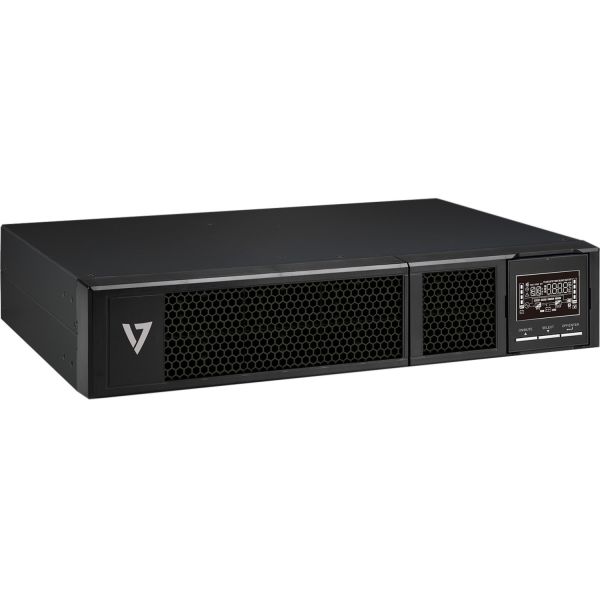

The V7 1500VA Online UPS maintains perfect output by converting AC power input to DC, then reconverting the UPS output to a pure sine AC waveform. Constant On-line operation protects sensitive equipment from power fluctuations on the AC line. This UPS provides the highest level of power protection and battery backup for mission-critical applications in education, healthcare, military, and government institutions where space is limited, by power reliability is critical. Zero transfer time between online and battery modes maintains continuous operation of connected equipment without interruption and the integrated network card allows full remote configuration and management including shutdowns. Eight IEC C13 outlets provide pure sine wave AC ...output filtered to protect connected equipment against damaging surges and line noise. A menu-driven LCD provides detailed alarms and notifications provides system status, event logs, battery and power module status, firmware update info and more.
Specifications
Manufacturer: V7
Manufacturer Part Number: UPS2URM1500DC-NC
Manufacturer Website Address: http://www.v7world.com
Brand Name: V7
Product Model: UPS2URM1500DC-NC
Product Name: UPS2URM1500DC-NCV7 1500VA/1500W Online Double Conversion UPS 230V
Product Type: Double Conversion Online UPS
Technical Information
AVR: Yes
Plug/Connector Type: Schuko
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Dataline Protection: RJ-11/RJ-45
Cord Length: 3.05 m
Transfer Time: 0 ns
Application/Usage:
Power Description
Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.50 kW
Input Voltage: 230 V AC
Output Voltage: 240 V AC
Waveform Type: Pure Sine Wave
Surge Energy Rating: 720 J
Display & Graphics
Display: LCD
Management
Network Management: RS-232
Alarm: Site Wiring Fault
Controls/Indicators
Status Indicators:AC Mode Battery Mode Load Level Battery Level Input Voltage Output Voltage Overload Fault Low Battery
Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
USB: Yes
USB (HID Compliant) Port: Yes
Battery Information
DC System Voltage: 12 V DC
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 2.60 Minute
Backup/Run Time (Half Load): 9.50 Minute
Typical Battery Recharge Time: 3 Hour
Environmental Conditions
Operating Humidity: 20% - 95%
Sound Emission: 50 dB
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 86.2 mm
Width: 438 mm
Depth: 410 mm
Length: 410 mm
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 15.50 kg
Miscellaneous
Package Contents:Rack / Tower UPS 4-post Rail Kit Tower Pedestals USB Cable User's Guide Warranty Compliance
Additional Information:
Certifications & Standards: CE
Country of Origin: China
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information: 3 Year (1 Year Battery)
Directly Connected Equipment Guarantee: €150000
The V7 1500VA Online UPS maintains perfect output by converting AC power input to DC, then reconverting the UPS output to a pure sine AC waveform. Constant On-line operation protects sensitive equipment from power fluctuations on the AC line. This UPS provides the highest level of power protection and battery backup for mission-critical applications in education, healthcare, military, and government institutions where space is limited, by power reliability is critical. Zero transfer time between online and battery modes maintains continuous operation of connected equipment without interruption and the integrated network card allows full remote configuration and management including shutdowns. Eight IEC C13 outlets provide pure sine wave AC ...output filtered to protect connected equipment against damaging surges and line noise. A menu-driven LCD provides detailed alarms and notifications provides system status, event logs, battery and power module status, firmware update info and more.
Specifications
Manufacturer: V7
Manufacturer Part Number: UPS2URM1500DC-NC
Manufacturer Website Address: http://www.v7world.com
Brand Name: V7
Product Model: UPS2URM1500DC-NC
Product Name: UPS2URM1500DC-NCV7 1500VA/1500W Online Double Conversion UPS 230V
Product Type: Double Conversion Online UPS
Technical Information
AVR: Yes
Plug/Connector Type: Schuko
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Dataline Protection: RJ-11/RJ-45
Cord Length: 3.05 m
Transfer Time: 0 ns
Application/Usage:
- IT Equipment
- Data Center
- Mission Critical Equipment
Power Description
Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 1.50 kW
Input Voltage: 230 V AC
Output Voltage: 240 V AC
Waveform Type: Pure Sine Wave
Surge Energy Rating: 720 J
Display & Graphics
Display: LCD
Management
Network Management: RS-232
Alarm: Site Wiring Fault
Controls/Indicators
Status Indicators:
Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
USB: Yes
USB (HID Compliant) Port: Yes
Battery Information
DC System Voltage: 12 V DC
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 2.60 Minute
Backup/Run Time (Half Load): 9.50 Minute
Typical Battery Recharge Time: 3 Hour
Environmental Conditions
Operating Humidity: 20% - 95%
Sound Emission: 50 dB
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 86.2 mm
Width: 438 mm
Depth: 410 mm
Length: 410 mm
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 15.50 kg
Miscellaneous
Package Contents:
Additional Information:
- Temperature : 0-40 °C
- Rack Width : 19in (482.6mm)
- Noise Level : Less than 50 dB
- Frequency Range : 40/70 Hz
- Assurance : up to 150.000 € connected equipment assurance
Certifications & Standards: CE
Country of Origin: China
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information: 3 Year (1 Year Battery)
Directly Connected Equipment Guarantee: €150000
