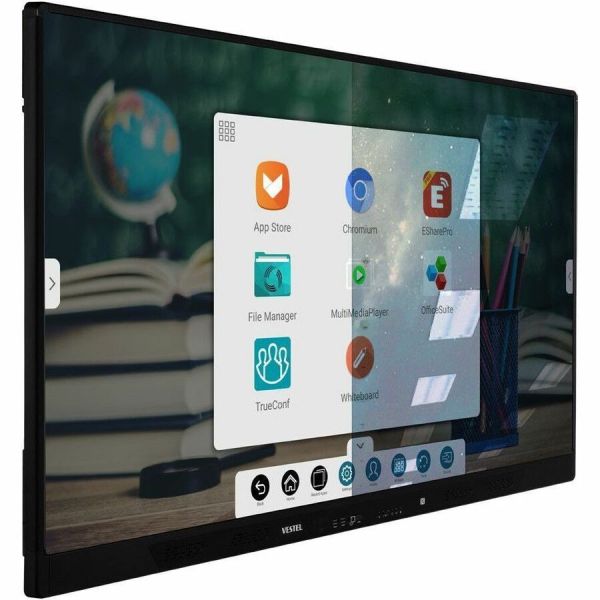

Vestel Visual Solutions IFX864-U4 Collaboration Display

Marketing Information

The New IFX Series

The Android 9 OS-powered IFX Series is the second generation of . Vestel's cost-effective and highly interactive tailored design for education. The series includes powerful touch/pen tools with a light user experience together with all the fundamental features needed for teachers and students, and manageability for school IT administrators.

Display Features | Impressive 4K Performance

Exceptional viewing creates superior picture quality with 4K resolution and 178-degree viewing angle.

Eye-care Solution

Designed to reduce eye strain with flicker-free screen@ at maximum brightness level.

Anti Glare Tempered Glass

The anti-glare coating prevents excessiv...e light reflection and provides a smooth touch performance. Toughened glass is incorporated into the robust design of the display to avoid accidental damage to the screen.

Improved Fluent Touch Experience

Incorporating the latest 20 point IR Touch technology with faster response. The new IFX range is designed to allow multiple users to interact simultaneously. The super-smooth surface allows for a highly precise and user-friendly writing experience.

Smooth Touch Support

A new touch frame gives the users the option to auto-recognize the color and pen thickness.

Specifications
Manufacturer: Vestel Electronics
Manufacturer Part Number: IFX864-U4
Manufacturer Website Address: http://vestel.co.uk
Brand Name: Vestel Visual Solutions
Product Series: IFX
Product Model: IFX864-U4
Product Name: IFX864-U4 Collaboration Display
Product Type: Collaboration Display
Display & Graphics
Viewable Screen Size: 2184.40 mm
Display Screen Type: LCD
Backlight Technology: Direct LED
Screen Mode: 4K UHD
Screen Resolution: 3840 x 2160
Scan Format: 2160p
Aspect Ratio: 16:9
Response Time: 8 ms
Colour Supported: 1.07 Billion Colors
Colour Depth: 10-bit
Contrast Ratio:

• 35,000:1
• 1,200:1

Brightness: 400 cd/m²
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Graphics Controller Model: Mali470 MP3
Tempered Glass: Yes
Glass Thickness: 4 mm
Standard Refresh Rate: 60 Hz
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Touch Points: 20
Touchscreen Technology: Infrared (IrDA)
Processor & Chipset
Processor Type: Cortex A55
Processor Core: Quad-core (4 Core)
Memory
Standard Memory: 2 GB
Memory Technology: DDR3 SDRAM
Memory Card Supported:

• embedded MultiMediaCard (e.MMC)
• microSD

Storage
Flash Memory Capacity: 8 GB
Audio
Speakers: Yes
Number of Speakers: 2
RMS Output Power: 40 W
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac
Bluetooth: Yes
Bluetooth Standard: Bluetooth 4.2
Interfaces/Ports
HDMI: Yes
Number of HDMI Inputs: 4
Number of HDMI Outputs: 1
Total Number of USB Ports: 4
USB: Yes
Network (RJ-45): Yes
Audio Line Out: Yes
VGA: Yes
Serial: Yes
S/PDIF Out: Yes
Software
Operating System Platform:

• Windows
• Mac OS
• Linux
• Android

Operating System:

• Android 9.0 Pie
• Windows 10
• Windows 8
• Windows 7
• Windows Vista
• Windows XP

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 600 x 400
Height: 1184 mm
Width: 1962 mm
Depth: 97 mm
