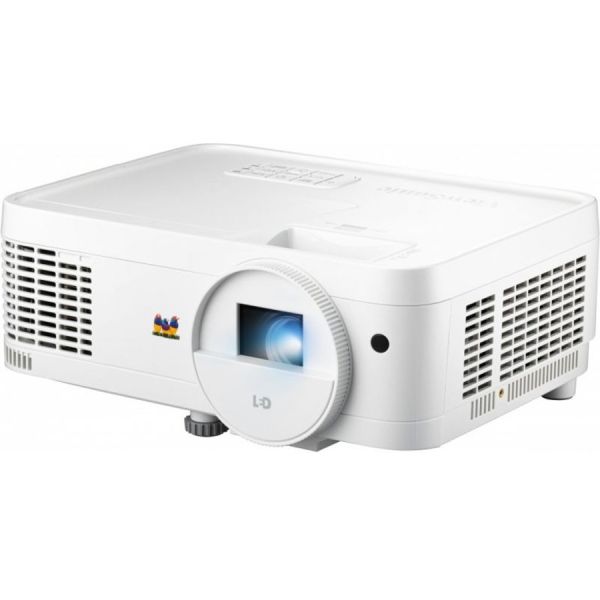

ViewSonic LS510W 3,000 ANSI Lumens WXGA LED Business/Education Projector​

Marketing Information

The LS510W is ViewSonic's lamp-free high brightness WXGA projector for business and education. Adopting industry-leading 3rd generation LED technology, the LS510W delivers 3,000 ANSI Lumens while eliminating the use of toxic mercury, reducing the cost and effort of frequent lamp replacement and lowering the total cost of ownership. The lamp-free light source offers enhanced sustainability for a greener environment while delivering a wider color gamut for bright and vivid images in a meeting room, classroom, or any other environment. The projector boasts efficient use with instant power on/off, convenient projector software update, and vertical keystone correction along with 360° tilt angle projection for flexible applications.

...3rd Generation LED Technology for Greater Sustainability
With the 3rd generation LED technology, the LS510W frees users from frequent lamp replacement and toxic mercury. Offering consistently impressive brightness for 30,000 hours, the projector saves the cost of time, manpower and money for maintenance, while providing a greener and more sustainable future.

Lamp-free, Mercury-free, Maintenance-free

Saving More with the Advanced LED Technology
Adopting ams OSRAM's Ostar Projection Power LED technology, the LED projector is both energy saving and cost efficient, consuming less energy than competing lamp-based projectors.

Less Power Consumption

Enhanced Brightness for Business/Education Environments
Thanks to the latest LED technology, the LS510W achieves a major brightness breakthrough to 3,000 ANSI Lumens. With extreme-high contrast ratio of 3,000,000:1, the projector ensures bright and detailed images in dim or lit environments.

3,000 ANSI Lumens

Present the Best with Vibrant Colors
Impress any audience with ViewSonic's exclusive color technology, covering wide color gamut, Bring your presentation with a true-to-life color experience.

Efficient Instant Power On/Off
Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.

Versatile Application
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or floors.

360° Projection

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop.

USB Type A Power Supply
The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.

Non-stop 24/7 Operation
The advanced cooling design enables 24/7 operation without degradation of image quality or work performance, making the projector ideal for applications that require continuous use.

Sealed Optical Engine with IP5X
Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.

IP5X
Dimension & I/O Ports

Specifications
Manufacturer: ViewSonic Corporation
Manufacturer Part Number: LS510W
Manufacturer Website Address: http://www.viewsoniceurope.com/uk/
Brand Name: ViewSonic
Product Series: LS
Product Model: LS510W
Product Name: LS510W 3,000 ANSI Lumens WXGA LED Business/Education Projector​
Packaged Quantity: Carton
Product Type: DLP Projector
Technical Information
Projection Method: Front
Vertical Scan Range: 23 Hz - 120 Hz
Projection Lens
Minimum Focal Length: 22 mm
Maximum Focal Length: 24.10 mm
Maximum Diagonal Image Size: 7.62 m (300")
Optical Zoom: 1.1x
Lamp
Number of Lamps: 1
Lamp Type: LED
Normal Mode Lamp Life: 30000 Hour
Standard Mode Brightness: 3000 lm
Native Resolution: 1280 x 800
Graphic Mode: WXGA
Maximum Resolution: 1920 x 1080
Native Aspect Ratio: 16:10
Contrast Ratio: 3,000,000:1
Video
Video Signal Standard: HDTV
Output Scan Format: 1080p
Audio
Speaker Included: Yes
Interfaces/Ports
HDMI: Yes
USB: Yes
Power Description
Operating Power Consumption: 240 W
Physical Characteristics
Form Factor:

• Floor Mountable
• Wall Mountable
• Ceiling Mountable

Height: 115 mm
Width: 293 mm
Depth: 221 mm
Weight (Approximate): 2.65 kg
Miscellaneous
Application/Usage:

• Business
• Education
• Meeting
• Class Room
• Presentation

Package Contents:

• LS510W 3,000 ANSI Lumens WXGA LED Business/Education Projector
• Power Cord
• Remote Control
• QSG
