Wasp WDI4700 2D Barcode Scanner

Marketing Information

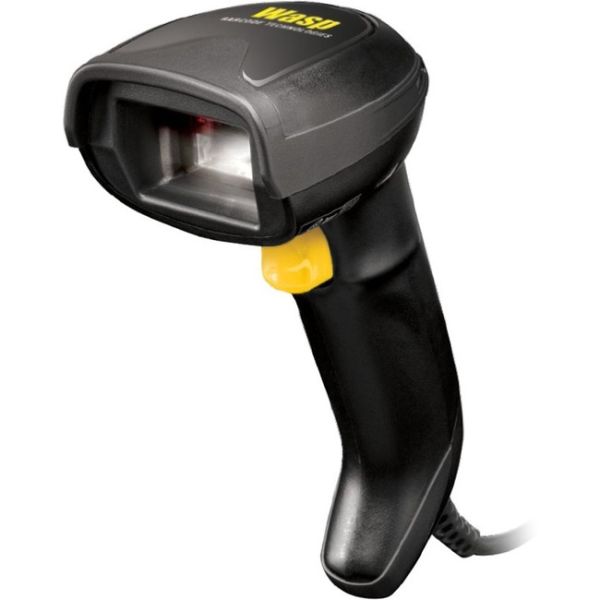

Wasp WDI4700 2D Barcode Scanner

The new Wasp WDI4700 2D Scanner is a multipurpose digital imager designed to offer an ergonomic scanning experience to the user, and an outstanding performance thanks to its megapixel sensor with white-illumination 2D technology.

The WDI4700 motion-sensing technology detects the user's movements to switch automatically between presentation and handheld reading without the need of a stand. It also allows the user to program the aimer and sensor according to the user's preferences.

Thanks to its highly visible 4-Dot aimer, the WDI4700 can define exact reading zones to reduce accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple barco...de environment. In addition, its visible white illumination is easier on the eyes and reads colored labels better.

The WDI4700 omnidirectional scanner can read 1D and 2D, postal and composite codes (PDF417) at a fast speed even from mobile devices. It also features enhanced optics to improve motion tolerance and high-speed imaging to read fast moving codes. This makes it ideal for a wide-range of industries such as: mobile marketing or ticketing applications, retail (POS), light manufacturing, healthcare, access control, transportation, entertainment, commercial services like postal, banks, public administration, utilities, etc.

Specifications
Manufacturer: Wasp Barcode Technologies
Manufacturer Part Number: 633809007149
Manufacturer Website Address: http://www.waspbarcode.co.uk
Brand Name: Wasp
Product Model: WDI4700
Product Name: WDI4700 2D Barcode Scanner
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D codes:

• GS1 DataBar™ linear codes.
• Aztec Code
• China Han Xin Code
• Data Matrix
• MaxiCode
• Micro QR Code
• QR Code
• Australian Post
• British Post
• China Post
• IMB
• Japanese Post
• KIX Post
• Planet Code
• Planet Code
• Postnet
• Royal Mail Code (RM4SCC) EAN/JAN Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• MacroPDF
• MicroPDF417
• PDF417
• UPC A/E Composites
• Digimarc Barcodes

Image Sensor Type: Imager
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Weight (Approximate): 161 g
Miscellaneous
Package Contents:

• WDI4700 2D Barcode Scanner
• 6' USB cable
• Scanner programming guide
• 2-year warranty

Warranty
Limited Warranty: 2 Year
