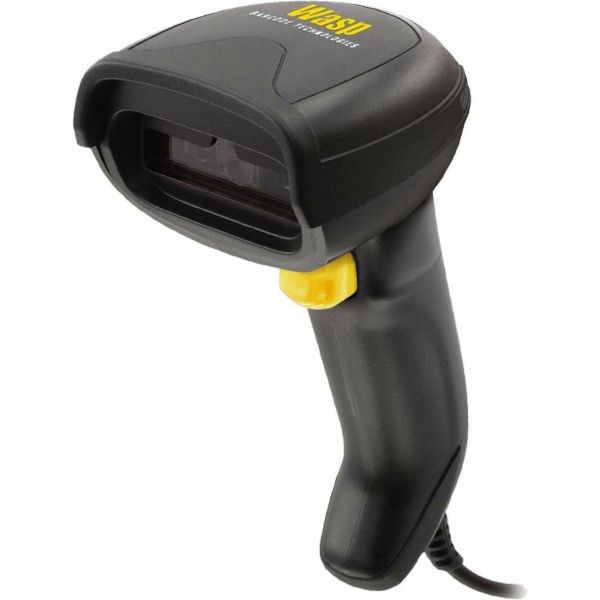

Wasp WDI9600 USB Laser Barcode Scanner

Marketing Information

The new Wasp WDI9600USB Laser barcode scanneris a multipurpose linear imager designed to provide best-in-class reading performance with an exceptional depth of field.

The WDI9600's soft line viewfinder technology enables the operator to effortlessly read both high density and low-resolution barcodes, as well as hard-to-read, poor quality, and damaged barcodes without human intervention. The viewfinder technology enables operators to maximize productivity while reducing accidental reads in a multiple barcode environment. Adding to the WDI9600's versatility, barcodes can be scanned directly from mobile device screens or through plexiglass panels.

Ease of use is a hallmark of the WDI9600 which includes unique motionix technology t...hat provides operators the flexibility to easily transition between handheld and stand-mounted operations. The scanner easily reads fast moving barcodes, including barcodes at awkward angles or in poorly lit or very bright lighting. The reader features a disinfectant-ready enclosure which can withstand harsh chemical cleaning. For added convenience, the WDI9600 can directly interface with USB-based solutions.

Benefits

• Enhanced linear imaging technology for superior scanning and depth of field
• Soft line viewfinder technology to easily target the barcode to be read
• USB connectivity
• Disinfectant-ready enclosure resistant to harsh chemical cleaning

Ideal For

• Office and retail: point-of-sale
• Commercial services including postal, banks, public administration, utilities
• Light manufacturing, work-in-Progress, order processing
• Healthcare, laboratories, pharmacies
• Ticketing and entertainment

Specifications
Manufacturer: Wasp Barcode Technologies
Manufacturer Part Number: 633809009013
Manufacturer Website Address: http://www.waspbarcode.co.uk
Brand Name: Wasp
Product Model: WDI9600
Product Name: WDI9600 USB Laser Barcode Scanner
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:

1D/Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes

Light Source: Laser
Image Sensor Type: CCD
Scan Rate: 400 scan/s
Scan Mode: Trigger
Scanning Distance: 1.47 m
Features:

• Notification LED
• Beep

Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Maximum Ambient Light: 130000 lux
Drop Specification:

Withstands repeated drops from 6.0 ft (1.8 m) onto a concrete surface.

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 0.13 mm
Maximum Element Resolution (Code 39): 0.51 mm
Interfaces/Ports
Host Interface: USB
Power Description
Input Current: 350 mA
Standby Current: 60 mA
Environmental Conditions
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 0% to 95%
Physical Characteristics
Form Factor: Handheld
Color Family: Dual Colour
Product Color:

• Black
• Yellow

Width: 165.1 mm
Depth: 68.6 mm
Length: 109.2 mm
Weight (Approximate): 163 g
Miscellaneous
Package Contents:

• WDI9600 1D Barcode Scanner
• 6' USB cable
• Scanner programming guide
• 2-year warranty

Ingress Protection (IP) Rating: IP52
Application/Usage:

• Retail
• Light/Clean Manufacturing
• Healthcare
• Laboratory
• Pharmacy
• Ticketing
• Entertainment

Environmental Compliance:

• China Restriction of Hazardous Substances (China RoHS)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 2 Year
