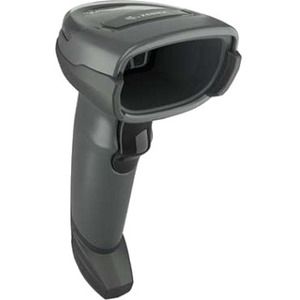

Zebra DS4600 Series for Retail

Marketing Information

VERSATILITY THAT DOES MORE FOR YOUR WHOLE STORE

Shrink lines and deliver an in-store experience that keeps customers coming back again and again. The feature-rich DS4600 Series for Retail helps associates scan items of all sizes, read barcodes in nearly any condition and handle transactions of all kinds. Bulky items in a shopping cart, a customer's driver's license at the returns desk, a mobile coupon at checkout, tiny barcodes in the jewellery department, data from a travel document, the DS4600 Series does more for your whole store.

CAPTURE BARCODES MORE THAN 70 CENTIMETRES AWAY

Bulky and heavy items won't slow down your checkout lines. With an industry-leading 28-inch scan range on UPC codes and bright ...aim dot, it's easy for checkout associates to scan items in a shopper's cart without leaving the checkout.

ONE SCANNER FOR YOUR WHOLE STORE

No matter what kind of data you need to capture, the DS4600 Series is ready for the job. Scan barcodes on a mobile phone. Capture tiny barcodes on jewellery tags, or DotCode and dotted DataMatrix barcodes through cellophane. Read wide barcodes on packages. Collect data from IDs. Parse driver's license information. And much more.

FASTEST SCANNING PERFORMANCE IN ITS CLASS

Empower every associate to scan like your best associate. An 800 MHz microprocessor, high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology provide instant barcode capture on even the most challenging barcodes.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: DS4608-HD7U2100AZW
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: DS4600
Product Model: DS4608
Product Name: DS4600 Series for Retail
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• Code 39
• Code 128
• Code 93
• Codabar/NW7
• Code 11
• MSI Plessey
• UPC/EAN
• I 2 of 5
• Korean 3 of 5
• GS1 DataBar
• Base 32 (Italian Pharma)

2D:

• PDF417
• Micro PDF417
• Composite Codes
• TLC-39
• Aztec
• DataMatrix
• MaxiCode
• QR Code
• Micro QR
• Han Xin
• Postal Codes
• SecurPharm
• DotCode
• Dotted DataMatrix

OCR:

• OCR-A
• OCR-B
• MICR
• US Currency

Image Sensor Type: Imager
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Product Color: Black
Height: 165.1 mm
Width: 66 mm
Depth: 99.1 mm
Weight (Approximate): 161.9 g
