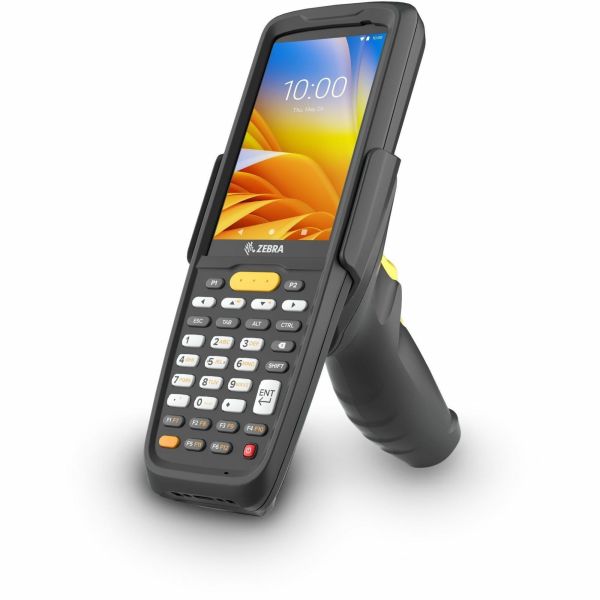

Zebra MC2200 Handheld Terminal

Marketing Information

'NO-COMPROMISE' COST-EFFECTIVE MOBILITY FOR SMALL AND MEDIUM BUSINESSES

In your small to medium-size business, your workers need to work smarter - not harder. Whether your workers are on the floor of a warehouse, manufacturing plant or retail store, outside in a port or yard, delivering goods or repairing equipment, a mobile computer will take productivity and task accuracy to a new level. But cost-effective devices have fallen short in features until today. Introducing the MC2200/MC2700, the affordable mobile computers packed with all the features your business needs. WiFi only and WiFi/cellular models connect any worker - inside your facility or out in the field. Advanced industrial design delivers extreme comfort and ease ...of use. The integrated touchscreen and keypad support today's 'green screen' apps, and tomorrow's touchscreen apps. Just add the trigger handle accessory to create a gun-style design for intensive scanning tasks. Complimentary pre-loaded value-add Mobility DNA tools make your devices easier to use, manage and secure. And the optional Mobility DNA Enterprise license unlocks big business voice and data tools that drive productivity and device management simplicity up.

UNPARALLELED ERGONOMICS AND FLEXIBILITY

Designed for unmatched comfort, ease of use and productivity

The MC2200/MC2700 devices are loaded with design differences that bring big benefits to your user. Zebra's award-winning Industrial Design team designed the size, shape and location of keys to enable workers to easily find the right keys by feel, even with gloves - and high contrasting colors make keys easy to see in any lighting, day or night.

Built to serve your business for years

Water-resistant, dustproof, drops to concrete, snow, rain, heat, freezing cold the MC2200/MC2700 mobile computers can handle it all. And two of the most vulnerable device components are fortified with Gorilla Glass the display and the scanner exit window.

Zebra's most powerful 'ultimate series' Android platform

When it comes to platform, these devices stand at the top of their class, offering an advanced processor and the most advanced version of Android. The processor delivers desktop-like performance on even the most demanding applications, all with less power for longer battery cycle times. Android 11 provides the latest OS features, with support for future Android versions for superior future-proofing. And for businesses with other Zebra devices, the shared platform simplifies application deployment across different device types and device support.

Zebra's enterprise-class data capture

Get first-time every time capture of virtually any barcode in any condition - including damaged, dirty and poorly printed barcodes. PRZM Intelligent Imaging technology delivers split-second barcode capture, so workers aren't 'waiting for the beep'. With omni-directional barcode capture, there's no need to spend time aligning scanner and barcode. And the optional 13 MP high resolution camera enables the easy capture of a new layer of business intelligence - and offers three times the lifecycle of a consumer smartphone camera.

Disinfectant-ready to protect your workers

The MC2200 and MC2700 are built to handle frequent wipedowns with common disinfectants, including bleach, hydrogen peroxide and alcohol, to help prevent the spread or germs or illness between workers.

Full-shift battery power

The standard battery can power nearly two full shifts in any environment. The extended battery can provide around-the-clock power.⁴And when you need to swap batteries, with Warm Swap mode, there's no need to turn off the device or close apps..

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: MC220K2B3E3RW
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Model: MC2200
Product Name: MC2200 Handheld Terminal
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 2D
• 1D

Scan Engine Model: SE4100
Image Sensor Type: Imager
Scanner Range: Standard Range
Google Mobile Services (GMS): Yes
Sensor Type:

• Accelerometer
• Gyroscope

SIM Size Supported: Nano
Features:

• Water Resistant
• Gorilla Glass
• Drop Proof
• VoIP

Drop Specification:

Multiple 5 ft./1.52 m drop to concrete from 14° F to 122° F/-10° C to 50° C per MIL-STD 810G

Processor & Chipset
Processor Type: Snapdragon
Processor Model: 660
Processor Core: Octa-core (8 Core)
Processor Speed: 1.80 GHz
Memory
Standard Memory: 3 GB
Flash Memory: 32 GB
Memory Card Supported:

• microSD
• SDXC

Display & Graphics
Screen Size: 10.2 cm (4")
Screen Mode: WVGA
Screen Resolution: 800 x 480
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Number of Keys: 34
Keyboard Type: Function Numeric
Buttons & Keys:

Physical scan, Volume up/down; Power

Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0 BLE
Near Field Communication (NFC): Yes
Cellular Data Connectivity Technology:

• LTE
• UMTS

GPS: Yes
Global Navigation Satellite System (GNSS) Supported: BeiDou/Galileo/GLONASS
Interfaces/Ports
USB: Yes
Camera
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 11
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 4900 mAh
Battery Included: Yes
Maximum Battery Run Time: 17.64 Hour
Environmental Conditions
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Product Color: Black
Form Factor: Brick/Straight Shooter
Height: 200.5 mm
Width: 70 mm
Depth: 38.5 mm
Weight (With Battery): 316 g
Miscellaneous
Application/Usage:

• Warehouse
• Distribution
• Asset Tracking
• Manufacturing
• Retail

Ingress Protection (IP) Rating: IP65
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 1 Year
