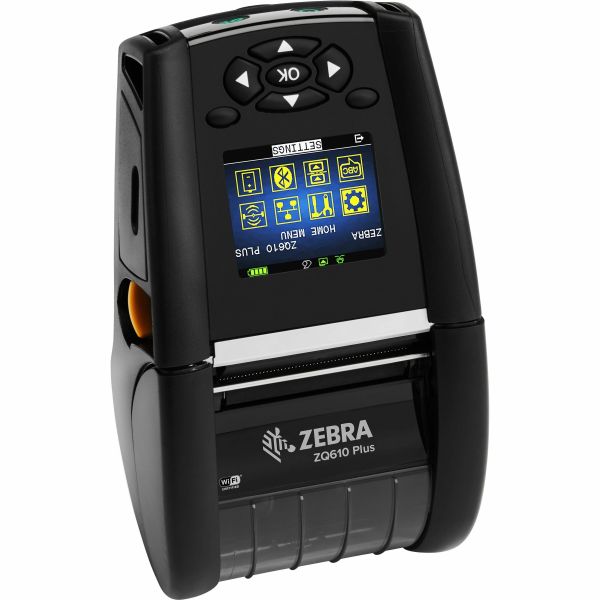

Zebra ZQ610 Plus Direct Thermal Printer

Marketing Information

Premium mobile label and receipt printers for maximum productivity

Want to improve inventory management and customer service in your store? With the ZQ600 Plus Series mobile printer, you can. The ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600 Plus Series never sleeps on the job. Your workers get the fast, dependable wireless connections and your IT department will fi...nd the ZQ600 Plus Series easier to integrate, manage, setup and secure thanks to Zebra's Link-OS® printer operating system and powerful Print DNA suite of applications, utilities and developer tools. ZQ600 Plus Series- the next evolution in the gold standard for mobile label and receipt printing.

Premium Features for Maximum Productivity | The Industry's First Wi-Fi^TM6 Mobile Printer

The ZQ600 Plus Series offers fast, dependable wireless connections for your inside-the-four-walls applications. Take advantage of your Wi-Fi 6/6E network upgrade and get best-in-class WPA3 security, lightning-fast speeds and enhanced roaming. For flexibility, choose between 802.11ax / Bluetooth® 5.3 or 802.11ac / Bluetooth 4.2 dual radio options, depending on your network environment.

Industry-Standard 802.11r Fast Roaming for Seamless Access

With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.

Instant Wake-Up Over Wi-Fi

This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.

Large Color Display Makes Configuration and Operation a Snap

The ZQ600 Plus Series provides a large display, user-friendly interface and easily customized menu. The ZQ600 Plus Series is based on Zebra's Link-OS menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.

Business Tough-Built for All-Day Every Day Enterprise Use

While the ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.

Unsurpassed Battery Power Management | Do More on a Single Charge

With the ZQ600 Plus Series' high-capacity battery, you can be sure that every worker has plenty of power for every shift.Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power.

Extraordinary Battery Management Capabilities

The ZQ600 Plus Series' PowerPrecision+ battery delivers the ultimate in battery power and management. A wealth of easily accessible battery metrics makes it easy to identify aging batteries before they impact productivity.

Specifications
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZQ61-HUXAE04-00
Manufacturer Website Address: http://www.zebra.com/gb/en
Brand Name: Zebra
Product Series: ZQ600 Plus
Product Model: ZQ610 Plus
Product Name: ZQ610 Plus Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 115 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 813 mm
Maximum Print Width: 48 mm (1.89")
Barcode Symbology Supported:

• PDF417
• 2D
• Micro PDF-417
• Maxi Code
• QR Code
• GS1 DataBar (RSS)
• AZTEC
• Plessey
• POSTNET
• Data Matrix
• TLC 39
• FIM Postnet
• MSI
• UPC-A
• UPC-E
• Code 39
• Code 93
• UCC/EAN 128
• Code 128
• Codabar (NW-7)
• Interleaved 2 of 5
• 2 and 5 Digits Add-on
• EAN-8
• EAN-13
• MSI PLESSEY

Peel Facility: Yes
Application/Usage:

• Healthcare
• Retail
• Manufacturing
• Warehouse
• Transportation & Logistic
• Mobile

Features:

• Water Resistant
• Belt Clip
• Dust Resistant
• Easy to Use

Ingress Protection (IP) Rating: IP54
Character Sets:

• Universal Font Scaling Technology (UFST)
• Agfa Monotype
• English

Fonts Included: Chinese Korean fonts
Print Technology: Direct Thermal
Memory
Standard Memory: 256 MB
Flash Memory: 512 MB
Interfaces/Ports
USB Host: Yes
USB: Yes
USB Standard: USB 2.0
Network & Communication
Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Display & Graphics
Display Screen: Yes
Screen Size: 5.1 cm (2")
Display Screen Type: LCD
Cutter
Cutter: Yes
Cutter Type: Tear Bar
Media Types & Handling
Media Type:

• Label
• Receipt
• Linered Label

Media Sensor:

• Gap Sensor
• Black Mark Sensor
• Label Present Sensor

Media Thickness: 165.1 µm
Maximum Roll Diameter: 34.90 mm
Maximum Label Width: 55.40 mm
Fonts & Emulation
Language Emulation:

• CPCL
• EPL
• ZPL
• XML

Software
Operating System Supported:

Link-OS

Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Capacity: 3250 mAh
Environmental Conditions
Operating Temperature: -20°C - 50°C
Operating Relative Humidity: 10% - 90%
Storage Temperature: -25°C - 65°C
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Height: 72.4 mm
Width: 91.4 mm
Depth: 170.9 mm
Weight (Approximate): 600 g
Miscellaneous
Platform Supported:

• PC
• Android
• SPARC

Energy Star: Yes
Warranty
Limited Warranty: 1 Year
