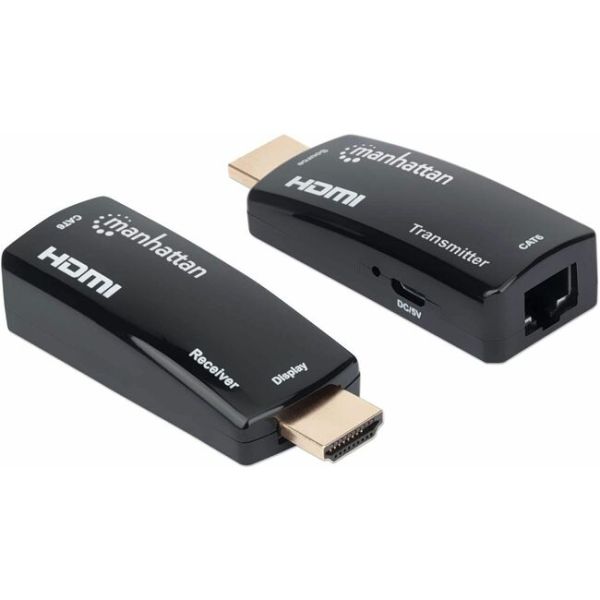

Manhattan 1080p Compact HDMI over Ethernet Extender Kit

Marketing Information

The 1080p Compact HDMI over Ethernet Extender Kit - a space-saving way to extend HDMI to where you want it

The Manhattan 1080p Compact HDMI over Ethernet Extender Kit can connect nearly any digital HDMI source (e.g., gaming console [PlayStation®, Xbox® and more], Blu-ray player, satellite receiver, digital recorder, etc.) to an HD display or projector at a distance up to 60 m (196 ft.) with one Cat6 Ethernet cable. The Kit provides reliable 1080p@60Hz resolution video and multichannel audio transmission over longer distances than HDMI cables alone. Its slim and compact design is ideal for installations in confined spaces or virtually anywhere.

Flexible Solution for Many A/V Applications

I...deal for trade shows, classrooms, home theater, conference rooms, business office and retail applications, the Manhattan 1080p Compact HDMI over Ethernet Extender Kit is a cost-effective solution that boosts and extends an HDMI signal to where it's needed. Ethernet cabling — UTP, SSTP or SFTP (cables not included) — is less expensive and easier to install than HDMI cabling and in-line signal repeaters. When used with our HDMI over Ethernet Extender Kit, these cables deliver a clear, sharp and vivid picture over longer distances.

Quality Construction and Easy Installation

HDCP compliant with HDMI, the Manhattan 1080p Compact HDMI over Ethernet Extender Kit is tested to guarantee performance and reliability. It installs quickly without having to run software or install additional hardware. It also supports Power Over Cable (PoC), which means that one single power adapter (connected to the Transmitter) can power both the Transmitter and Receiver. This PoC tech frees up a power plug for more important applications.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 207539
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Name: 1080p Compact HDMI over Ethernet Extender Kit
Package Type: Retail
Product Type: Video Extender Kit
Physical Characteristics
Product Color: Black
Product Material:

• ABS
• Plastic

Material Details: Housing: ABS plastic
Dimensions:

• Dimensions: 62 x 27 x 17 mm (2.44 x 1.06 x 0.67 in.)

Weight (Approximate): Weight: 34 g (0.08 lbs.)
Miscellaneous
Additional Information:

Standards and Certifications
- HDCP 1.3
- DVI 1.0
- CE
- FCC
- RoHS

General
- Cat6 cable: 1080p at 60 m (196 ft.)
- Power: 5 VDC
- Reset button

Connections
- One HDMI male (transmitter/receiver)
- One RJ45 female (transmitter/receiver)
- One 5 VDC power female, Micro-USB (transmitter/receiver)

Electrical
- One 5 VDC power female, Micro-USB (transmitter/receiver)
- Power consumption: 5 W (max.)
- Supports Power over Cable (PoC): one power adapter powers both the Transmitter and Receiver units

Signal Input/Output
- Input video signal: 0.5 - 1.0 V p-p
- Input DDC signal: 5 V p-p (TTL)
- Output video: HDCP 1.3, DVI 1.0

Video Resolutions
- Standard Definition, High Definition, Full High Definition: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p

Operating Environment
- Operation temperature: 0 - 50°C (32 - 122°F)
- Storage temperature: -10 - 60°C (14 - 140°F)
- Humidity (noncondensing): 5 - 90%

Compatibility:

• Gaming console
• Sony PlayStation
• Microsoft Xbox
• Blu-ray players
• Set-top boxes
• Satellite receivers

Warranty
Limited Warranty: 3 Year
