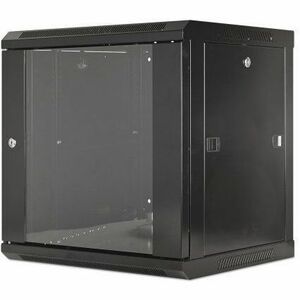

Intellinet 19" Wallmount Cabinet

Marketing Information

The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition - get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10" cabinets and numerous 19" versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & gray (RAL7035).

• We offer you a solution for every need.
• Various options include:
• Removable side panels (some lockable).
• Tempered/Toughened glass doors.
• Double Section, making cabling and co...mponent exchange simple.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 711814
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Intellinet
Product Model: 711814
Product Name: 19" Wallmount Cabinet
Product Type: Rack Cabinet
Technical Information
Rack Type: Enclosed Cabinet
Application/Usage:

• LAN Switch
• Patch Panel
• Networking

Features:

• Removable Side Panel
• Reversible Front Door
• Lockable Side Panel

Physical Characteristics
Form Factor: Wall Mountable
Color Family: Black
Product Color: Jet Black
Product Material:

• Cold-rolled Steel (CRS)
• Tempered Glass
• Toughened Glass
• Galvanized Steel
• SPCC

Static/Stationary Weight Capacity: 60 kg
Height: 500.4 mm
Width: 599.4 mm
Depth: 449.6 mm
Weight (Approximate): 18 kg
Rack Height: 9U
Rack Width: 482.60 mm
Rack Depth: 350.01 mm
Miscellaneous
Package Contents:

• 19" Wallmount Cabinet
• 4 x Mounting Rails
• Installation Hardware
• 10 x M6 Sets
• 6 x Keys

Assembly Required: No
Warranty
Limited Warranty: 3 Year
