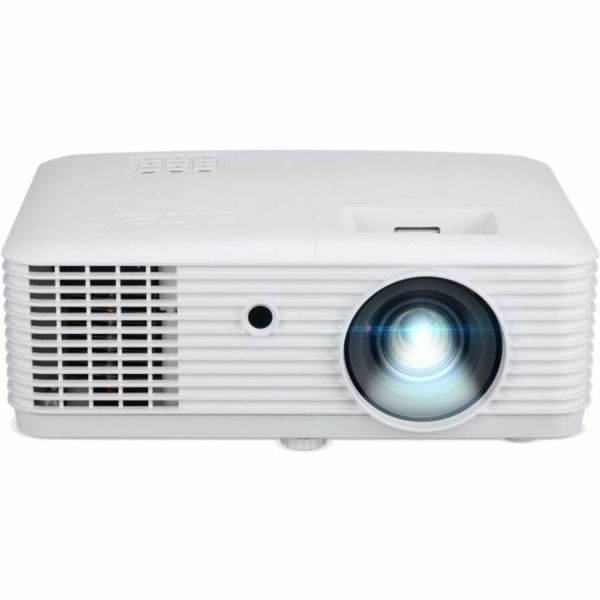

Acer Vero PL3510ATV DLP Projector

Specifications
Manufacturer: Acer, Inc
Manufacturer Part Number: MRJWT11002
Manufacturer Website Address: http://www.acer.co.uk
Brand Name: Acer
Product Line: Vero
Product Model: PL3510ATV
Product Name: Vero PL3510ATV DLP Projector
Product Type: DLP Projector
Technical Information
Projection Method:

• Rear
• Rear Ceiling
• Front
• Front Ceiling

Platform Supported:

• Mac
• Windows
• PC

Projection System: DLP
Video Compatibility:

• SDTV
• SECAM
• HDTV
• EDTV
...i>NTSC
• PAL

Computer Compatibility:

• Google Chrome PC
• Windows PC
• Mac PC

Horizontal Scan Range: 15 kHz - 100 kHz
Vertical Scan Range: 24 Hz - 120 Hz
Offset: 130%
Bluetooth: Yes
Noise Level (Economy Mode): 29 dB
Processor & Chipset
Processor Type: Cortex A35
Processor Model: S905Y4-B
Processor Core: Quad-core (4 Core)
Memory
Standard Memory: 2 GB
Memory Technology: DDR4 SDRAM
Storage
Flash Memory Capacity: 8 GB
Projection Lens
Lens Type:

• Manual Focus
• Manual Zoom

Minimum Focal Length: 16.88 mm
Maximum Focal Length: 21.88 mm
Minimum Diagonal Image Size: 762 mm
Maximum Diagonal Image Size: 7.62 m (300")
Lens Shift: 55% ~ 65% - Vertical
Optical Zoom: 1.3x
Minimum Lens Aperture: f/2.59
Maximum Lens Aperture: f/2.87
Minimum Projection Distance: 1 m
Maximum Projection Distance: 7.60 m
Lens Shift Detail: 55% ~ 65% (Vertical)
Lamp
Number of Lamps: 1
Lamp Type: Laser
Normal Mode Lamp Life: 20000 Hour
Economy Mode Lamp Life: 30000 Hour
Low Mode Brightness: 4000 lm
Standard Mode Brightness: 5000 lm
Standard Mode Brightness Disclaimer: Compliant with ISO 21118 standard
Colour Supported: 1.07 Billion Colors
Native Resolution: 1920 x 1080
Graphic Mode: 4K2K
Maximum Resolution: 3840 x 2160
Native Aspect Ratio: 16:9
Compatible Aspect Ratio: 4:3
Throw Ratio: 1.15 to 1.5 (2006.60 mm@2000 mm)
Zoom Ratio: 1.3:1
Contrast Ratio: 50,000:1
Uniformity: 85%
Vertical Keystone Correction: -30°/+30°
Horizontal Keystone Correction: -30°/+30°
Minimum Vertical Sync: 24 Hz
Maximum Vertical Sync: 120 Hz
Minimum Horizontal Sync: 15 kHz
Maximum Horizontal Sync: 100 kHz
Digital Zoom: 2x
Keystone Correction Vertical: 4-corner Correction Vertical +/- 30° (Vertical, Manual & Auto)
Keystone Correction Horizontal: 4-corner Correction Horizontal +/- 30° (Horizontal, Manual)
Video
Video Signal Format:

• NTSC 3.58
• NTSC 4.43
• PAL B
• PAL D
• PAL G
• PAL I
• PAL M
• PAL N
• SECAM B
• SECAM D
• SECAM G
• SECAM K
• SECAM K1
• SECAM L

Video Signal Standard: HDTV
Audio
Number of Speakers: 1
Speaker Output Power: 10 W
Speaker Included: Yes
Supported Multimedia Formats
Audio Formats:

• MP3
• WMA
• FLAC
• OGG
• AAC

Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Wireless Capability: Chromecast
Bluetooth Standard: Bluetooth 5.0
Interfaces/Ports
HDMI: Yes
HDMI Version: HDMI 2.0
Number of HDMI Ports: 3
Total Number of HDMI Ports: 3
S/PDIF: Yes
Number of USB Ports: 2
USB: Yes
USB Standard: USB 2.0
USB Connector Type: 2 x Type-A
Number Of Audio Outputs: 1
Audio Line Out: Yes
RS-232 (D-sub): 1
Bluetooth Audio: x1, V 5.0, BT In/Out
Built-in Devices
Built-in Devices: Speaker
Power Description
Input Voltage Range: 120 V AC - 230 V AC
Voltage Frequency: 50 Hz
Operating Power Consumption: 250 W
Standby Power Consumption: 500 mW
Power Supply: 100 V AC ~ 240 V AC
Power Supply Input Voltage Range: AC input 100~240V
Physical Characteristics
Form Factor: Ceiling Mountable
Height: 119 mm
Width: 304 mm
Depth: 226 mm
Weight (Approximate): 3 kg
Operating Temperature: 0°C to 40°C
Operating Humidity: 80%
Fan Noise: 29 dB(A) Approximate Economy Mode
Installation: Ceiling Mount
Security:

• Security Bar
• Kensington Lock

Miscellaneous
Package Contents:

Vero PL3510ATV DLP Projector

AC Power Cord

Battery for remote control

Lens Cap

Quick Start Guide

Remote Control

Carrying Case

Country of Origin: China
Standard Accessories: AC Power Cord

Battery for remote control

Lens Cap

Quick Start Guide

Remote Control

Carrying Case
