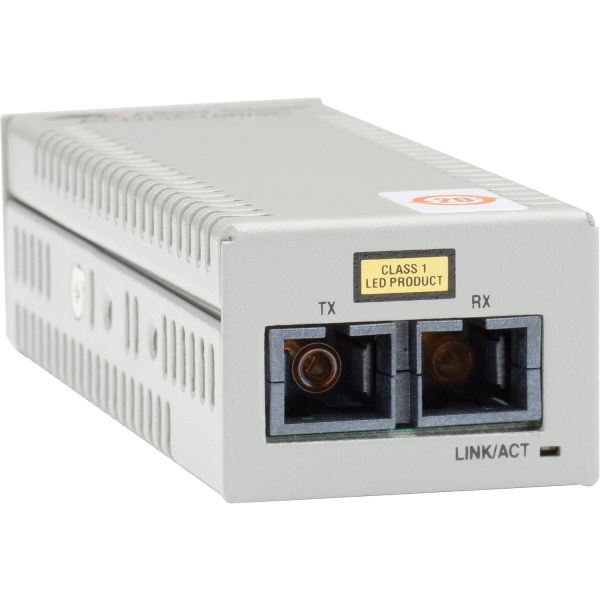

Allied Telesis AT-DMC100/SC Transceiver/Media Converter
£112.51
Limited Stock: Only 0 available
Allied Telesis AT-DMC100/SC Transceiver/Media Converter
Environment: Not yet rated
Human Rights: Not yet rated
Animal Welfare: Not yet rated
Social Integrity: Not yet rated
Durability: Not yet rated
Allied Telesis AT-DMC100/SC Transceiver/Media Converter is available to buy in increments of 1
Categories: Transceivers|Media Converters, Default Category
| Maximum Distance Supported | 2 km |
|---|---|
| Number of LC Ports | 1 |
| Fiber Mode Supported | Multi-mode |
| LC Port Type | Duplex |
| Product Type | Transceiver/Media Converter |
| Power Source | Power Supply |
| Form Factor | Desktop/Wall Mountable |
| Network Technology | 10/100Base-TX/100Base-FX |
| Brand Name | Allied Telesis |
| Ethernet Technology | Fast Ethernet |
| USB | Yes |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Product Family | DMC |
| Media Type Supported | Twisted Pair/Optical Fiber |
| Total Number of Ports | 2 |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
The Allied Telesis DMC Series of Gigabit mini media converters are among the smallest media converters in the market today.
Overview
At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, Allied Telesis DMC Series media converters can easily fit into the palm of a hand. In addition to being compact-with a small carbon footprint-the DMC Series can also be powered with the included Micro USB to USB cable, and plugged directly into a laptop or PC or may also be powered via the optional AC/DC adapter. This saves installation time and cabling as there are no further power requirements.
Fiber Connections
The Allied Telesis range of Gigabit media converters provides a complete family of c...onversion devices, allowing users to extend the size of UTP networks with the use of fiber cabling. Supporting SC, ST and LC fiber connectors, these converters can be used to extend networks with up to 500m of multi-mode fiber.
VLAN Support
Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send data packets on the network. DMC Series media converters are fully compatible with these packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these packets, making them unsuitable for modern networks.
Smart MissingLink (SML)
The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Simple Installation
All Allied Telesis media converters feature auto MDI/MDI-X, allowing the converter to be connected to either a PC, hub or switch with a simple UTP cable. The media converters also allow the installer to test the integrity of the fiber connection, by forcing the converters to communicate over the fiber cable. This Link Test feature allows installers to check for cable faults without the need for expensive fiber-optic test equipment.
Smart Link Restoration
Smart Link Restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.
Power Saving
The DMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.5W of power usage, DMC Series media converters are some of the most efficient in the market today.
Specifications
Manufacturer: Allied Telesis, Inc
Manufacturer Part Number: AT-DMC100/SC-50
Manufacturer Website Address: http://www.alliedtelesis.co.uk
Brand Name: Allied Telesis
Product Series: DMC
Product Model: AT-DMC100/SC
Product Name: AT-DMC100/SC Transceiver/Media Converter
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: Yes
Management Port: No
Number of LC Ports: 1
LC Port Type: Duplex
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported:
Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 1310 nm
Maximum Distance Supported: 2 km
Fiber Optic Cable Core/Cladding Specification:
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:
Power Description
Power Source: Power Supply
Physical Characteristics
Form Factor:
Height: 21.6 mm
Width: 31.8 mm
Depth: 91.4 mm
Weight (Approximate): 113.4 g
The Allied Telesis DMC Series of Gigabit mini media converters are among the smallest media converters in the market today.
Overview
At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, Allied Telesis DMC Series media converters can easily fit into the palm of a hand. In addition to being compact-with a small carbon footprint-the DMC Series can also be powered with the included Micro USB to USB cable, and plugged directly into a laptop or PC or may also be powered via the optional AC/DC adapter. This saves installation time and cabling as there are no further power requirements.
Fiber Connections
The Allied Telesis range of Gigabit media converters provides a complete family of c...onversion devices, allowing users to extend the size of UTP networks with the use of fiber cabling. Supporting SC, ST and LC fiber connectors, these converters can be used to extend networks with up to 500m of multi-mode fiber.
VLAN Support
Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send data packets on the network. DMC Series media converters are fully compatible with these packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these packets, making them unsuitable for modern networks.
Smart MissingLink (SML)
The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Simple Installation
All Allied Telesis media converters feature auto MDI/MDI-X, allowing the converter to be connected to either a PC, hub or switch with a simple UTP cable. The media converters also allow the installer to test the integrity of the fiber connection, by forcing the converters to communicate over the fiber cable. This Link Test feature allows installers to check for cable faults without the need for expensive fiber-optic test equipment.
Smart Link Restoration
Smart Link Restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.
Power Saving
The DMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.5W of power usage, DMC Series media converters are some of the most efficient in the market today.
Specifications
Manufacturer: Allied Telesis, Inc
Manufacturer Part Number: AT-DMC100/SC-50
Manufacturer Website Address: http://www.alliedtelesis.co.uk
Brand Name: Allied Telesis
Product Series: DMC
Product Model: AT-DMC100/SC
Product Name: AT-DMC100/SC Transceiver/Media Converter
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: Yes
Management Port: No
Number of LC Ports: 1
LC Port Type: Duplex
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 1310 nm
Maximum Distance Supported: 2 km
Fiber Optic Cable Core/Cladding Specification:
- 50/125 µm
- 62.5/125 µm
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:
- 10/100Base-TX
- 100Base-FX
Power Description
Power Source: Power Supply
Physical Characteristics
Form Factor:
- Desktop
- Wall Mountable
Height: 21.6 mm
Width: 31.8 mm
Depth: 91.4 mm
Weight (Approximate): 113.4 g
