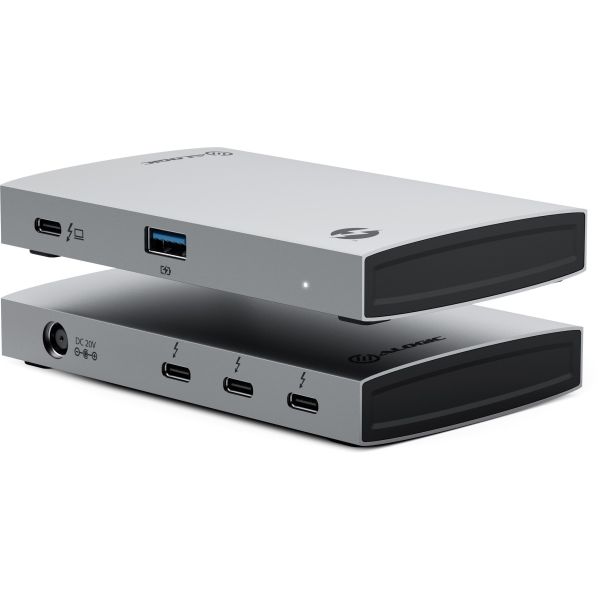

Alogic Thunderbolt 4 BLAZE Hub

Marketing Information

Thunderbolt 4 Blazing Performance
Designed for when speed and performance matter, the hub provides a massive 40Gbps bandwidth for connecting external displays and high-speed peripherals such as external hard drives. Unlike existing Thunderbolt devices which only provide a single Thunderbolt downstream port, the ALOGIC BLAZE hub can connect up to 3x downstream Thunderbolt 4 / USB4.0 peripherals and offers unparalleled productivity for creative professionals.

Single Cable Simplicity -60W Charging
This hub truly does it all -and all over a single cable.In addition to transferring data and video over a single connection to the computer, the hub can also provide up to 60W of power to charge laptops using USB P...ower Delivery technology. This is sufficient to power the majority of mainstream laptops.

Specifications
Manufacturer: Alogic
Manufacturer Part Number: TB4H3TB
Manufacturer Website Address: http://www.alogic.co
Brand Name: Alogic
Product Line: BLAZE
Product Name: Thunderbolt 4 BLAZE Hub
Packaged Quantity: 1
Package Type: Retail
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Notebook
• Desktop PC
• Hard Drive
• Monitor

Number of Displays Supported: 2
Screen Mode Supported: 4K
Supported Resolutions: 3840 x 2160
Maximum Data Transfer Rate: 5 GB/s
Interfaces/Ports
Host Interface: Thunderbolt 4
Number of USB Type-A Ports: 1
Number of USB Type-C Ports: 3
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 3 x USB-C Thunderbolt 4 / USB 4.0, 40Gbps, 3A
Thunderbolt: Yes
Software
Operating System Supported:

• Windows 10
• Mac OS X 10.13 High Sierra

Physical Characteristics
Color Family: Dual Colour
Product Color:

• Space Gray
• Black

Height: 17.4 mm
Width: 73 mm
Weight (Approximate): 700 g
Miscellaneous
Brand Compatibility:

• Apple
• Microsoft
