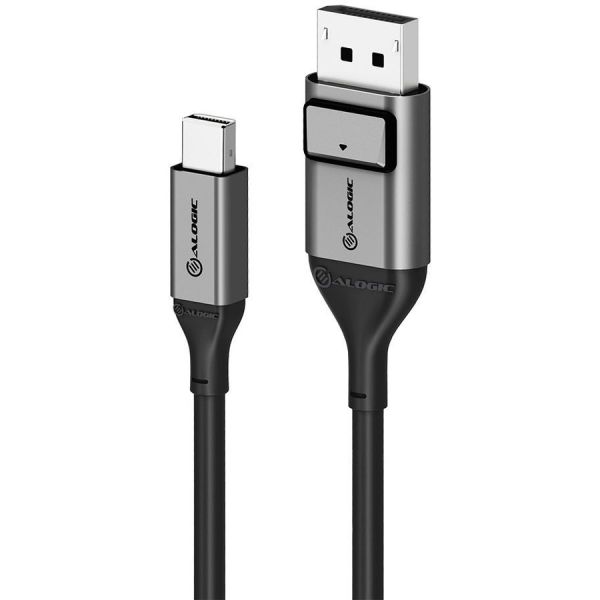

Alogic Ultra 8K Mini DisplayPort to DisplayPort Cable - V1.4 - 1m

Marketing Information

Ultra-High Definition 8K Resolution|The Ultra 8K Mini DisplayPort to DisplayPort Cable is built to meet and exceed VESA DisplayPort 1.4 specifications. The cable supports a maximum resolution of 8K@60Hz. It also supports all other DisplayPort V1.4 features such as High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps, Dynamic HDR (High Dynamic Range), Display Stream Compression 1.2 (DSC), Forward Error Correction, High-Bandwidth Digital Content Protection (HDCP 2.2), 32 Uncompressed Digital Audio Channels and Multi-Stream Transport (MST).

Ultra ConstructionThe ALOGIC Ultra range is crafted from superior materials and specially designed to guarantee a longer lifespan. The cable core is strengthened with synthetic fibre and reinforced wi...th thermoplastic (TPE) jacket to provide increased protection against all types of wear and tear. The cable head is also constructed from thermoplastic (TPE) for maximum strain relief and finished with a metal alloy housing for additional durability.

Functional Design|The cable features a latch design with an innovative easy-release button, this ensures a firm, stable connection that can't be pulled loose when locked. The easy-release button is designed for one-hand operation, making it easier to connect to monitors and display in tight spaces.

Specifications
Manufacturer: Alogic
Manufacturer Part Number: ULMDPDP01-SGR
Manufacturer Website Address: http://www.alogic.co
Brand Name: Alogic
Product Line: Ultra
Product Name: Ultra 8K Mini DisplayPort to DisplayPort Cable - V1.4 - 1m
Packaged Quantity: 1
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort/Mini DisplayPort
Cable Length: 1 m
Connector Type on First End: DisplayPort 1.4 Digital Audio/Video - Male
Connector on First End Details: 1 x DisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second End: Mini DisplayPort 1.4 Digital Audio/Video - Male
Connector on Second End Details: 1 x Mini DisplayPort 1.4 Digital Audio/Video - Male
Device Supported:

• Audio/Video Device
• Monitor
• Notebook

Data Transfer Rate: 32.4 Gbit/s
Supported Resolution: 7680 x 4320
Features:

• Strain Relief
• Locking Latch
• HDCP 2.2
• Wear Resistant
• Tear Resistant
• HDR Support
• Display Stream Compression (DSC) 1.2
• Forward Error Correction (FEC) Support
• Multi-Stream Transport (MST) Support

Physical Characteristics
Product Color: Space Gray
