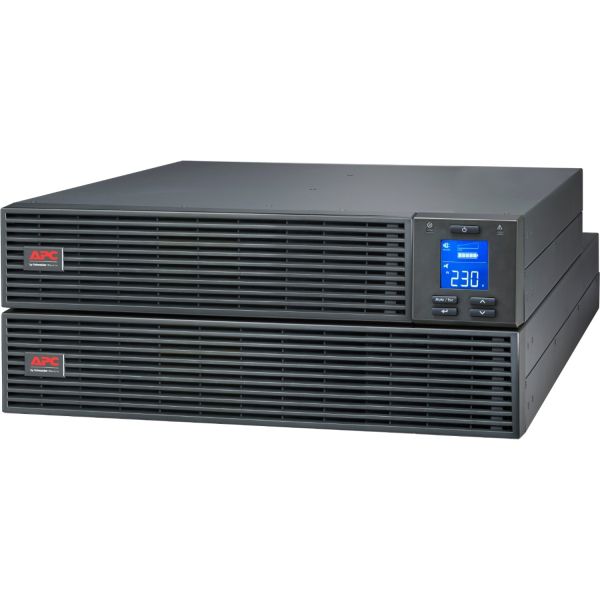

APC by Schneider Electric Easy UPS 1000VA Rack-mountable UPS
1063682658
£821.74
APC by Schneider Electric Easy UPS 1000VA Rack-mountable UPS
APC by Schneider Electric Easy UPS 1000VA Rack-mountable UPS is available to buy in increments of 1
Environment, key point: Not yet rated
Human, key point: Not yet rated
Animal, key point: Not yet rated
Social, key point: Not yet rated
Durability, key point: Not yet rated
Category: General Purpose UPS
| Network Management | USB |
|---|---|
| Waveform Type | Sine Wave |
| Backup/Run Time (Half Load) | 52 Minute |
| Backup/Run Time (Full Load) | 23.70 Minute |
| Replaceable Battery | Yes |
| Application/Usage | Equipment/Server |
| Battery Chemistry | Lead Acid |
| Product Type | Double Conversion Online UPS |
| Input Voltage | 230 V AC |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 320-C14 |
| Input Voltage Range | 160 V AC - 280 V AC |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| Product Family | Easy UPS |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 800 W |
| Receptacle Detail | 4 x IEC 60320 C13 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)/Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRV1KRILRK
Ma...nufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Easy UPS
Product Name: Easy UPS 1000VA Rack-mountable UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: IEC 320-C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 4 x IEC 60320 C13
Overload Protection: Yes
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage:
Power Description
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 800 W
Input Voltage: 230 V AC
Input Voltage Range: 160 V AC - 280 V AC
Output Voltage:
Input Frequency: 70 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 600 J
Management
Network Management: USB
Alarm:
Controls/Indicators
Status Indicators:
Interfaces/Ports
Serial Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Battery Characteristics: Maintenance-free, Sealed, Leak-proof
Battery Chemistry: Lead Acid
Battery Energy: 1857.6 kJ
Backup/Run Time (Full Load): 23.70 Minute
Backup/Run Time (Half Load): 52 Minute
Typical Battery Recharge Time: 4 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -20°C - 50°C
Maximum Operating Elevation: 3 km
Maximum Storage Elevation: 14.76 km
Storage Relative Humidity: 0% - 95%
Physical Characteristics
Height: 172 mm
Width: 438 mm
Depth: 412 mm
Rack Height: 4U
Form Factor: Rack-mountable
Weight (Approximate): 27 kg
Miscellaneous
Environmental Compliance:
Easy UPS On-Line
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRV1KRILRK
Ma...nufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Easy UPS
Product Name: Easy UPS 1000VA Rack-mountable UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: IEC 320-C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 4 x IEC 60320 C13
Overload Protection: Yes
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage:
- Equipment
- Server
Power Description
Load Capacity (VA): 1 kVA
Load Capacity (Watt): 800 W
Input Voltage: 230 V AC
Input Voltage Range: 160 V AC - 280 V AC
Output Voltage:
- 220 V AC
- 230 V AC
- 240 V AC
Input Frequency: 70 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 600 J
Management
Network Management: USB
Alarm:
- Low Battery
- Overload
- On Battery
Controls/Indicators
Status Indicators:
LED Indicators:
- Provide Easy-to-read Status Of The Unit
- Utility Power Conditions.
LCD Graphics Display:
- Text and Mimic Diagrams That Display Modes of Operation
- System Parameters
- Alarms.
Control Panel:
- Multi-function LCD Status
- Control Console
Interfaces/Ports
Serial Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Battery Characteristics: Maintenance-free, Sealed, Leak-proof
Battery Chemistry: Lead Acid
Battery Energy: 1857.6 kJ
Backup/Run Time (Full Load): 23.70 Minute
Backup/Run Time (Half Load): 52 Minute
Typical Battery Recharge Time: 4 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -20°C - 50°C
Maximum Operating Elevation: 3 km
Maximum Storage Elevation: 14.76 km
Storage Relative Humidity: 0% - 95%
Physical Characteristics
Height: 172 mm
Width: 438 mm
Depth: 412 mm
Rack Height: 4U
Form Factor: Rack-mountable
Weight (Approximate): 27 kg
Miscellaneous
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
