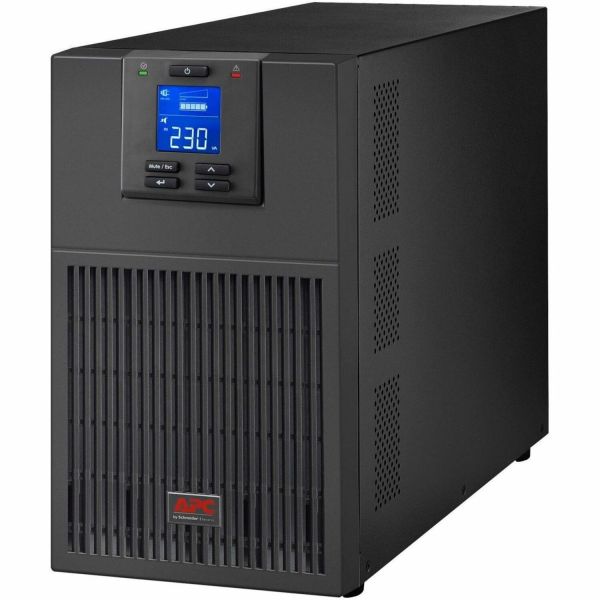

APC by Schneider Electric Easy UPS On-Line SRV 3000VA Tower UPS

Marketing Information

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input and 6x IEC 320 C13, 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The... SRV UPS is compatible with replacement battery cartridge APCRBCV205.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRV3KIE
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Easy UPS On-Line
Product Series: SRV
Product Name: Easy UPS On-Line SRV 3000VA Tower UPS
Packaged Quantity: 1
Product Type: Double Conversion Online UPS
Technical Information
Receptacle Type:

• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail:

• 6 x IEC 60320 C13
• 1 x IEC 60320 C19

Cord Length: 1.50 m
Phase: Single Phase
Application/Usage:

• IT
• Network
• Business

Surge Suppression: Yes
Power Description
Load Capacity (VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage:

• 230 V AC
• 120 V AC

Input Voltage Range: 110 V AC - 285 V AC
Output Voltage:

• 220 V AC
• 230 V AC
• 240 V AC

Input Frequency:

• 40 Hz
• 70 Hz

Output Frequency:

• 50 Hz
• 60 Hz

Waveform Type: Sine Wave
Display & Graphics
Display: LCD
Management
Network Management:

• RS-232
• SmartSlot

Alarm:

• On Battery
• Low Battery
• Overload

Interfaces/Ports
Serial Port: Yes
USB: Yes
Battery Information
DC System Voltage: 72 V DC
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2.90 Minute
Backup/Run Time (Half Load): 10.88 Minute
Battery Life: 5 Year
Typical Battery Recharge Time: 4 Hour
Replaceable Battery: Yes
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Storage Temperature: -20°C - 50°C
Maximum Operating Elevation: 3 km
Maximum Storage Elevation: 15 km
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 50 dB(A)
Thermal Dissipation: 1024 BTU/h
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 336 mm
Width: 190 mm
Depth: 425 mm
Form Factor: Tower
Weight (Approximate): 26 kg
