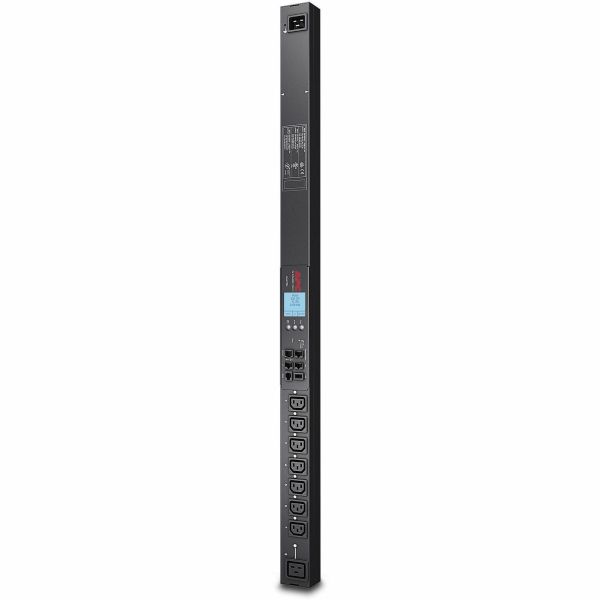

APC by Schneider Electric Switched Rack AP8958 8-Outlets PDU

Marketing Information

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers User-defined alarms warn ...of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8958
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: NetShelter
Product Series: Switched
Product Model: AP8958
Product Name: Switched Rack AP8958 8-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Switched
Plug/Connector Type: IEC 60320 C20
Power Description
Input Voltage:

• 200 V
• 208 V
• 230 V

Output Voltage:

• 100 V AC
• 200 V AC
• 208 V AC
• 230 V AC

Management
Management:

Protocols:

• Web
• SNMP
• Telnet
• Command Line Interface

Physical Characteristics
Mounting Orientation: Vertical
Mounting Preference: No Preference
Mount Type: Rack-mountable
Placement: Side
Form Factor: Tower
Rack Height: 0U
Height: 988 mm
Width: 56 mm
Depth: 46 mm
Weight (Approximate): 3.23 kg
Miscellaneous
For Country/Region: United States
Optimized Energy Efficiency: Yes
Product Take Back Program: Yes
REACH free of SVHC: Yes
Mercury Free: Yes
Lead Free: Yes
RoHS Exemption Information: https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8958_ROHS_DECLARATION&p_FileName=AP8958KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65033462&lang=en-us
EU RoHS Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65033462&lang=en-us
Environmental Profile Availability: https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
End of Life Manual Availability: https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
WEEE Statement: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
