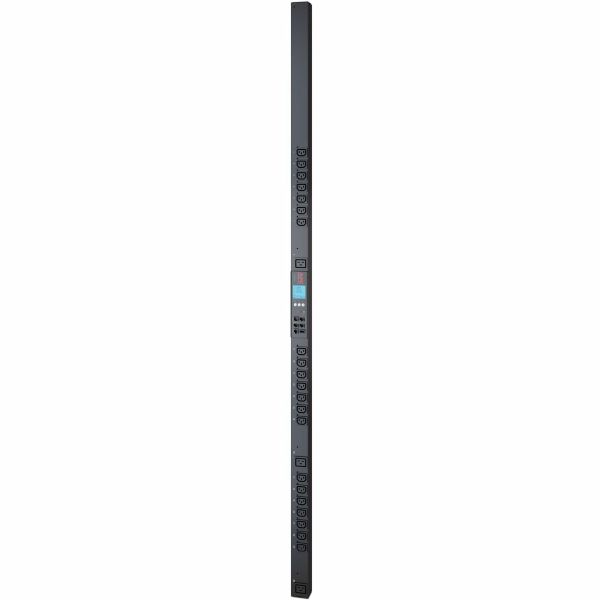

APC by Schneider Electric Metered-by-Outlet Rack PDU

Marketing Information

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined al...arms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8659
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: NetShelter
Product Series: Switched Metered
Product Name: Metered-by-Outlet Rack PDU
Product Type: PDU
Technical Information
PDU Type: Metered-by-Outlet
Plug/Connector Type: IEC 60320 C20
Power Description
Input Voltage:

• 200 V
• 208 V
• 230 V

Output Voltage:

• 100 V AC
• 200 V AC
• 208 V AC
• 230 V AC

Management
Management:

Protocols:

• SNMP
• Telnet

Physical Characteristics
Mounting Orientation: Vertical
Mounting Preference: No Preference
Mount Type: Rack-mountable
Placement: Side
Form Factor: Tower
Rack Height: 0U
Height: 1829 mm
Width: 56 mm
Depth: 51 mm
Weight (Approximate): 6.09 kg
Miscellaneous
For Country/Region: United States
Optimized Energy Efficiency: Yes
Product Take Back Program: Yes
REACH free of SVHC: Yes
Mercury Free: Yes
Lead Free: Yes
RoHS Exemption Information: https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8659_ROHS_DECLARATION&p_FileName=AP8659KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194454&lang=en-us
EU RoHS Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194454&lang=en-us
Environmental Profile Availability: https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
End of Life Manual Availability: https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
California Proposition 65 Warning: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WEEE Statement: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
