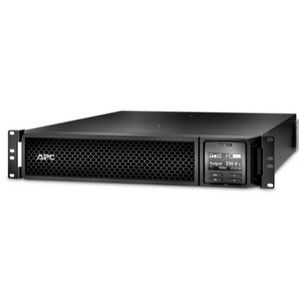

APC by Schneider Electric Smart-UPS SRT 2200VA RM 230V

Marketing Information

A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT2200RMXLI
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SRT
Product Name: Smart-UPS SRT 2200VA RM 230V
Packaged Quantity: 1 Each
Product Type: Double Conversion Online UPS
Technical Information
Receptacle Type:

• IEC 60320 C19
• IEC 60320 C13

Receptacle Detail:

• 2 x IEC 60320 C19
• 8 x IEC 60320 C13

Number of Battery & Surge Outlets: 22
Power Description
Load Capacity (VA): 2.20 kVA
Load Capacity (Watt): 1.98 kW
Input Voltage: 230 V AC
Output Voltage: 230 V AC
Waveform Type: Sine Wave
Battery Information
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4 Minute
Typical Battery Recharge Time: 3 Hour
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 85 mm
Width: 432 mm
Depth: 584 mm
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 25 kg
Miscellaneous
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
