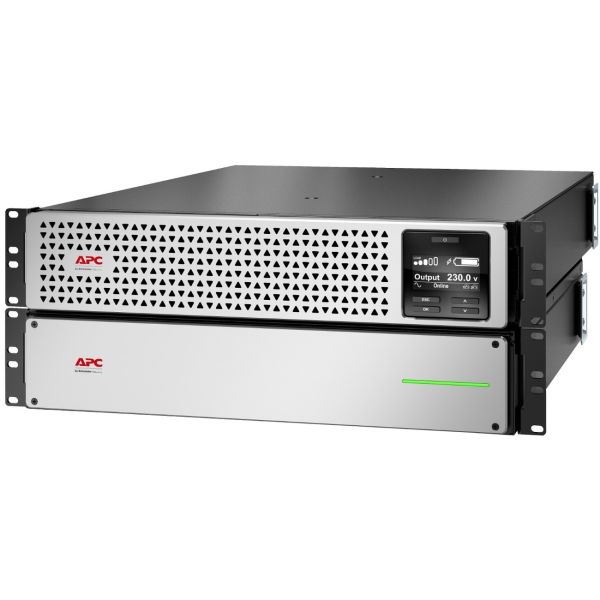

APC by Schneider Electric Smart-UPS 3000VA Rack-mountable UPS
1075822062
£6,256.91
APC by Schneider Electric Smart-UPS 3000VA Rack-mountable UPS
Environment, key point: Not yet rated
Human, key point: Not yet rated
Animal, key point: Not yet rated
Social, key point: Not yet rated
Durability, key point: Not yet rated
Categories: General Purpose UPS, Default Category
| Battery Life | 10 Year |
|---|---|
| Network Management | Network Card |
| Waveform Type | Sine Wave |
| Backup/Run Time (Half Load) | 1.55 Hour |
| Backup/Run Time (Full Load) | 48 Minute |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Product Type | Double Conversion Online UPS |
| Input Voltage | 230 V AC |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 60320 C20 |
| Input Voltage Range | 160 V AC - 275 V AC |
| Receptacle Type | IEC 60320 C13/IEC 60320 C19 |
| Product Family | Smart-UPS |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Product Color | Blue/Black/Silver |
| Receptacle Detail | 6 x IEC 60320 C13/2 x IEC 60320 C19 |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRTL3000RM4UXLI-NC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Name: Smart-UPS 3000VA Rack-mountable UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: IEC 60320 C20
Receptacle Type:
Receptacle Detail:
Power Description
Load Capacity ...(VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage: 230 V AC
Input Voltage Range: 160 V AC - 275 V AC
Output Voltage:
Input Frequency: 70 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 432 J
Management
Network Management: Network Card
Alarm: Alarm
Interfaces/Ports
USB: Yes
EPO Port: Yes
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Size: 48V
Battery Energy: 10368 kJ
Backup/Run Time (Full Load): 48 Minute
Backup/Run Time (Half Load): 1.55 Hour
Battery Life: 10 Year
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -20°C - 50°C
Maximum Operating Elevation: 10 km
Maximum Storage Elevation: 15.24 km
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 50 dB(A)
Thermal Dissipation: 317 BTU/h
Physical Characteristics
Color Family: Multicolor
Product Color:
Height: 171 mm
Width: 432 mm
Depth: 639 mm
Rack Height: 4U
Form Factor: Rack-mountable
Weight (Approximate): 44.50 kg
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRTL3000RM4UXLI-NC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Name: Smart-UPS 3000VA Rack-mountable UPS
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: IEC 60320 C20
Receptacle Type:
- IEC 60320 C13
- IEC 60320 C19
Receptacle Detail:
- 6 x IEC 60320 C13
- 2 x IEC 60320 C19
Power Description
Load Capacity ...(VA): 3 kVA
Load Capacity (Watt): 2.70 kW
Input Voltage: 230 V AC
Input Voltage Range: 160 V AC - 275 V AC
Output Voltage:
- 220 V AC
- 230 V AC
Input Frequency: 70 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 432 J
Management
Network Management: Network Card
Alarm: Alarm
Interfaces/Ports
USB: Yes
EPO Port: Yes
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Size: 48V
Battery Energy: 10368 kJ
Backup/Run Time (Full Load): 48 Minute
Backup/Run Time (Half Load): 1.55 Hour
Battery Life: 10 Year
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -20°C - 50°C
Maximum Operating Elevation: 10 km
Maximum Storage Elevation: 15.24 km
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 50 dB(A)
Thermal Dissipation: 317 BTU/h
Physical Characteristics
Color Family: Multicolor
Product Color:
- Blue
- Black
- Silver
Height: 171 mm
Width: 432 mm
Depth: 639 mm
Rack Height: 4U
Form Factor: Rack-mountable
Weight (Approximate): 44.50 kg
