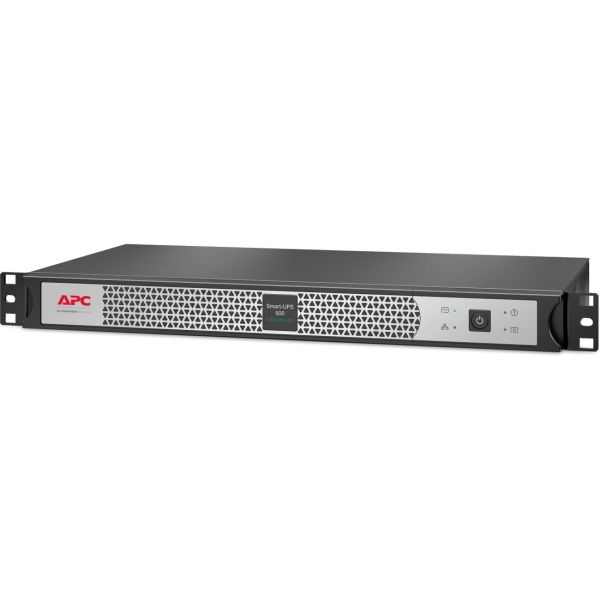

APC by Schneider Electric Smart-UPS 500VA Rack-mountable UPS

Marketing Information

Smart-UPS

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SCL500RMI1UNC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SCL
Product Name: Smart-UPS 500VA Rack-mountable UPS
Product Type: Double Conversion Online UPS
Technical Information
AVR: Yes
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 4 x IEC 60320 C13
Transfer Time: 10 ms
EMI/RFI Noise Filter: Yes
Application/Usage:

• POS Terminal
• Router
• Switch
• Network Hub
• Network Device
• Mission Critical Equipment
• Rack Server
• Business
• IT Equipment
• Server

Power Description
Load Capacity (VA): 500 VA
Load Capacity (Watt): 400 W
Input Voltage: 230 V AC
Input Voltage Range: 208 V AC - 253 V AC
Output Voltage: 230 V AC
Input Frequency: 63 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 510 J
Management
Network Management: USB
Alarm:

• On Battery
• Low Battery
• Overload

Controls/Indicators
Status Indicators:

• Disconnected battery notification
• Battery failure notification

Status Indicators:

• On Line
• On Battery

Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Energy: 108 kJ
Backup/Run Time (Full Load): 2.70 Minute
Backup/Run Time (Half Load): 6.30 Minute
Typical Battery Recharge Time: 3 Hour
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -10°C - 40°C
Maximum Operating Elevation: 1.97 km
Maximum Storage Elevation: 14.76 km
Storage Relative Humidity: 10% - 90%
Sound Emission (A-Weighted): 45 dB(A)
Physical Characteristics
Height: 44 mm
Width: 432 mm
Depth: 232 mm
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 4.10 kg
Miscellaneous
Package Contents:

• Smart-UPS 500VA Rack-mountable UPS
• Installation Guide
• Rack Mounting Support Rails
• USB Cable

Software Included: Powerchute Business Edition
Energy Star: Yes
Warranty
Limited Warranty: 5 Year
