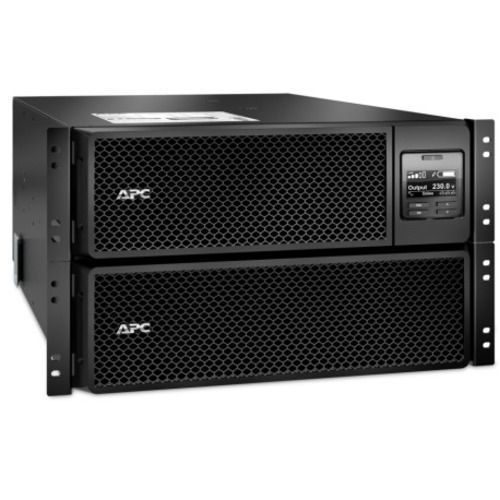

APC by Schneider Electric Smart-UPS SRT 8000VA RM 230V

Marketing Information

A versatile UPS developed for the harshest power conditions in the world.

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattend...ed graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT8KRMXLI
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SRT
Product Name: Smart-UPS SRT 8000VA RM 230V
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type:

• Hard Wire 3 wire (1PH+N+G)
• Hard Wire 5-wire (3PH + N + G)

Receptacle Type:

• Hard Wire 3-wire (H N + G)
• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail:

• 1 x Hard Wire 3-wire (H N + G)
• 6 x IEC 60320 C13
• 4 x IEC 60320 C19

Protection Type:

• Surge
• Spike
• Lightning

Bypass Switch:

• Internal
• Automatic & Manual

Emergency Power OFF: Yes
Power Description
Load Capacity (VA): 8 kVA
Load Capacity (Watt): 8 kW
Input Voltage: 230 V AC
Output Voltage: 230 V AC
Waveform Type: Sine Wave
Surge Energy Rating: 480 J
Circuit Breaker: Yes
Management
Alarm: Battery Failure
Controls/Indicators
Status Indicators: LED Indicators
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
Total Number of Expansion Slots: 1
Battery Information
Number of Batteries: 2
Battery Characteristics: Maintenance-free, Sealed, Spill-proof
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5 Minute
Backup/Run Time (Half Load): 16 Minute
Typical Battery Recharge Time: 1.50 Hour
Hot Swappable: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Sound Emission (A-Weighted): 55 dB(A)
Thermal Dissipation: 1497 BTU/h
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 263 mm
Width: 432 mm
Depth: 715 mm
Rack Height: 6U
Form Factor: Rack-mountable
Weight (Approximate): 111.82 kg
Miscellaneous
Package Contents:

• Smart-UPS SRT 8000VA RM 230V
• CD with Software
• Documentation CD
• Installation Guide
• Rack Mounting Brackets
• Rack Mounting Hardware
• Rails Rack Mount Bracket
• Temperature Probe
• USB Cable
• Warranty Card

Certifications & Standards:

• CE
• CE Mark

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
