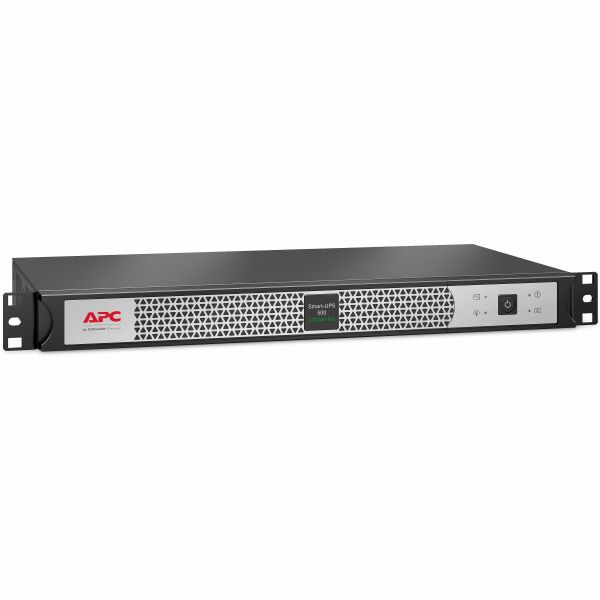

APC by Schneider Electric Smart-UPS 500VA Rack/Tower UPS

Marketing Information
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 4 IEC 320 C13 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
<...strong>Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SCL500RMI1UC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: SCL
Product Name: Smart-UPS 500VA Rack/Tower UPS
Packaged Quantity: 1 Each
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 4 x IEC 60320 C13
Number of Battery & Surge Outlets: 4
Transfer Time: 10 ms
EMI/RFI Noise Filter: Yes
Application/Usage:

• Router
• Network Hub
• Switch
• POS Terminal
• Server
• Network Device
• Mission Critical Equipment

Power Description
Load Capacity (VA): 500 VA
Load Capacity (Watt): 400 W
Input Voltage: 230 V
Input Voltage Range: 208 V AC - 253 V AC
Output Voltage: 230 V AC
Input Frequency: 63 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 510 J
Management
Network Management: SmartConnect
Alarm:

• On Battery
• Low Battery
• Overload

Controls/Indicators
Status Indicators: Status Indicators:

• Disconnected battery notification
• Battery failure notification

Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Energy: 108 kJ
Backup/Run Time (Full Load): 2.70 Minute
Backup/Run Time (Half Load): 6.30 Minute
Typical Battery Recharge Time: 3 Hour
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -10°C - 40°C
Maximum Operating Elevation: 2 km
Maximum Storage Elevation: 15 km
Storage Relative Humidity: 10% - 90%
Sound Emission (A-Weighted): 45 dB(A)
Physical Characteristics
Color Family: Dual Colour
Product Color:

• Black
• Silver

Height: 44 mm
Width: 432 mm
Depth: 232 mm
Rack Height: 1U
Form Factor: Rack-mountable
Mounting Preference: No Preference
Weight (Approximate): 4.06 kg
Miscellaneous
For Country/Region: United States
Software Included: APC Powerchute Business Edition
Energy Star: Yes
Product Take Back Program: No
Mercury Free: Yes
RoHS Exemption Information: https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RMI1UC_ROHS_DECLARATION&p_FileName=SCL500RMI1UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=528692798&lang=en-us
EU RoHS Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=528692798&lang=en-us
Environmental Profile Availability: https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN
End of Life Manual Availability: https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
REACH free of SVHC: No
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Battery Directive

Warranty
Directly Connected Equipment Guarantee:

• 150000 Lifetime
