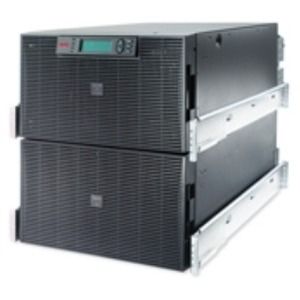

APC by Schneider Electric Smart-UPS RT 15kVA Rack Mountable UPS
£12,092.59
Limited Stock: Only 0 available
Only 1 left
APC by Schneider Electric Smart-UPS RT 15kVA Rack Mountable UPS
APC by Schneider Electric Smart-UPS RT 15kVA Rack Mountable UPS is available to buy in increments of 1
Categories: Industrial UPS, Default Category
| Battery Chemistry | Lead Acid |
|---|---|
| Product Type | Double Conversion Online UPS |
| Input Voltage | 220 V AC |
| Network Management | SNMP Manageable |
| Rack Height | 12U |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | Hard Wire 3-wire/Hard Wire 5-wire |
| Receptacle Type | Hard Wire 3-wire/Hard Wire 5-wire/IEC 320 EN 60320 C19/IEC Jumper |
| Network (RJ-45) | Yes |
| Product Family | Smart-UPS RT |
| Backup/Run Time (Half Load) | 22.40 Minute |
| Backup/Run Time (Full Load) | 8.30 Minute |
| Load Capacity (VA) | 15 kVA |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SURT15KRMXLI
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: RT
Product Mode...l: SURT15KRMXLI
Product Name: Smart-UPS RT 15kVA Rack Mountable UPS
Packaged Quantity: 1 Each
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type:
Receptacle Type:
Receptacle Detail:
Dataline Protection: RJ-45
Overload Protection: Yes
Power Description
Load Capacity (VA): 15 kVA
Input Voltage: 220 V AC
Output Voltage: 230 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Input Current: 83 A
Management
Network Management: SNMP Manageable
Bypass Switch:
Emergency Power OFF: Yes
Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
Modular Slots: SmartSlot
Battery Information
Number of Batteries: 4
Battery Characteristics: Maintenance-free/Sealed/Spill Proof
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 8.30 Minute
Backup/Run Time (Half Load): 22.40 Minute
Typical Battery Recharge Time: 2.50 Hour
Physical Characteristics
Color Family: Black
Rack Height: 12U
Height: 533 mm
Width: 432 mm
Depth: 773 mm
Weight (Approximate): 247.73 kg
Miscellaneous
Package Contents:
Additional Information:
Warranty
Limited Warranty: 2 Year
Smart-UPS RT 15kVA Rack Mountable UPS provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Smart-UPS RT 15kVA Rack Mountable UPS has the ability to be configured with matching battery packs to comply with aggressive runtime demands of business-critical systems.
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SURT15KRMXLI
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: RT
Product Mode...l: SURT15KRMXLI
Product Name: Smart-UPS RT 15kVA Rack Mountable UPS
Packaged Quantity: 1 Each
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type:
- Hard Wire 3-wire
- Hard Wire 5-wire
Receptacle Type:
- Hard Wire 3-wire
- Hard Wire 5-wire
- IEC 320 EN 60320 C19
- IEC Jumper
Receptacle Detail:
- 1 x Hard Wire 3-wire
- 1 x Hard Wire 5-wire
- 8 x IEC 320 EN 60320 C19
- 2 x IEC Jumper
Dataline Protection: RJ-45
Overload Protection: Yes
Power Description
Load Capacity (VA): 15 kVA
Input Voltage: 220 V AC
Output Voltage: 230 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Input Current: 83 A
Management
Network Management: SNMP Manageable
Bypass Switch:
- Static
- Internal
- External (Optional)
Emergency Power OFF: Yes
Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
Modular Slots: SmartSlot
Battery Information
Number of Batteries: 4
Battery Characteristics: Maintenance-free/Sealed/Spill Proof
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 8.30 Minute
Backup/Run Time (Half Load): 22.40 Minute
Typical Battery Recharge Time: 2.50 Hour
Physical Characteristics
Color Family: Black
Rack Height: 12U
Height: 533 mm
Width: 432 mm
Depth: 773 mm
Weight (Approximate): 247.73 kg
Miscellaneous
Package Contents:
- Smart-UPS RT 15kVA Rack Mountable UPS
- CD with software
- Rack Mounting support rails
- Smart UPS signaling RS-232 cable
- User Manual
- Web/SNMP Management Card
Additional Information:
- Multi-function LCD status and control console
- Audible and visible alarms : configurable delays
Output Voltage Note:
- Configurable for 220 : 230 or 240 nominal output voltage
- Standard Warranty: 2 Year Repair/Replace
Warranty
Limited Warranty: 2 Year
