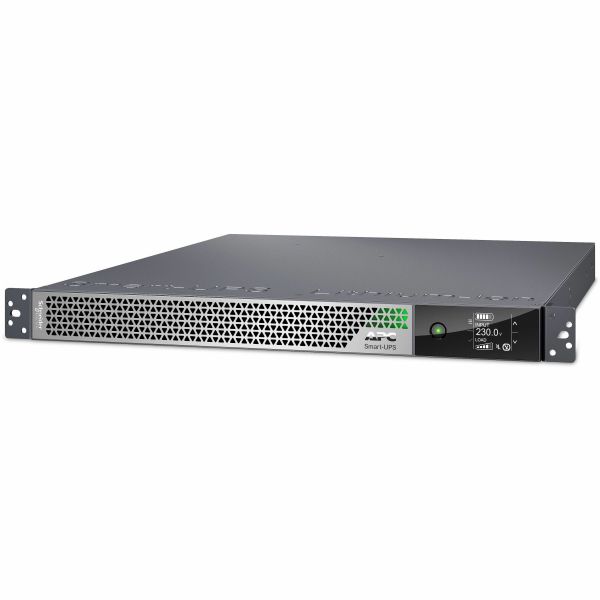

APC by Schneider Electric Smart-UPS Ultra 3000VA Rack-mountable UPS

Marketing Information
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with IEC Inlet, 3x IEC C13 and 2x IEC C19 outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean powe...r with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
Specifications
Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRTL3KRM1UINC
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS Ultra
Product Name: Smart-UPS Ultra 3000VA Rack-mountable UPS
Packaged Quantity: 1
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: British BS1363A
Receptacle Type:

• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail: 3 x IEC 320-C13
Cord Length: 2.44 m
Application/Usage:

• Server
• Storage
• Voice/Data Network
• Medical Laboratory
• Light Industrial Application

Power Description
Load Capacity (VA): 3 kVA
Load Capacity (Watt): 3 kW
Input Voltage: 230 V
Input Voltage Range: 160 V AC - 275 V AC
Output Voltage: 230 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Display & Graphics
Display: LCD
Management
Network Management: Network Card
Interfaces/Ports
USB: Yes
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Size: 50V
Battery Energy: 1209.6 kJ
Backup/Run Time (Full Load): 4.60 Minute
Backup/Run Time (Half Load): 10 Minute
Typical Battery Recharge Time: 1.50 Hour
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -15°C - 45°C
Maximum Operating Elevation: 3.05 km
Maximum Storage Elevation: 15.24 km
Storage Relative Humidity: 95%
Sound Emission: 55 dB
Physical Characteristics
Color Family: Silver
Product Color: Silver Grey
Height: 43 mm
Width: 432 mm
Depth: 560 mm
Rack Height: 1U
Form Factor: Rack-mountable
Mounting Preference: No Preference
Mounting Location: Vertical
Weight (Approximate): 15.90 kg
Miscellaneous
For Country/Region: United States
Package Contents:

• Smart-UPS Ultra 3000VA Rack-mountable UPS
• RJ45 cable

Product Take Back Program: No
RoHS Exemption Information: https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL3KRM1UINC_ROHS_DECLARATION&p_FileName=SRTL3KRM1UINCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567112324&lang=en-us
EU RoHS Declaration URL: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567112324&lang=en-us
Environmental Profile Availability: https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1
End of Life Manual Availability: https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1
REACH free of SVHC: No
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• China Restriction of Hazardous Substances (China RoHS)

Warranty
Limited Warranty: 5 Year
Additional Warranty Information:

5 years repair or replace
