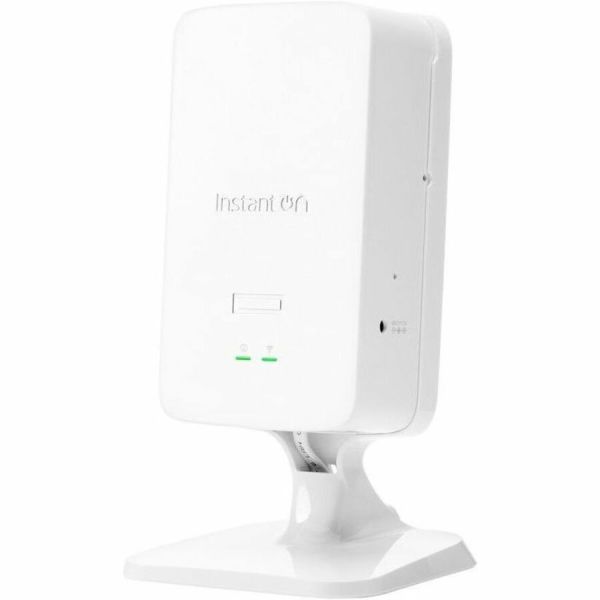

Aruba Instant On AP22D Wireless Access Point

Marketing Information

The rise of the remote and hybrid workplace has increased pressure on business networks. Existing Wi-Fi infrastructure is struggling to support the explosion of devices and bandwidthhungry applications - all contributing to spotty video calls and sluggish download speeds.

The Aruba Instant On Wi-Fi 6 portfolio is designed to meet the increasing volume of connected devices that small businesses support. Our range of Wi-Fi Certified 6™ access points deliver superior performance, coverage, and speed at a competitive price - perfect for small and growing businesses.

From IoT and point-of-sale devices to hundreds of guests connecting to your network, you need hardware that can keep up with changing daily demands without interv...ention. Aruba Instant On Wi-Fi 6 access points are designed to host from 30 to over 150 simultaneous connections. Our smart cloud management features are simple to use and quick to set up, with many enterprise-class features enabled by default.

HIGHLIGHTS | Simplicity at its best

Wi-Fi that works right out of the box

Performance that keeps users happy

Security you can count on

Protection against compromised administrative login credentials with Two-Factor Authentication

Future-ready WPA2/WPA3/OWE authentication for secure Wi-Fi access

We've got you covered

No extra licensing fees

Industry-leading warranty and support

The Wi-Fi 6 family features MU-MIMO, OFDMA, and up to 4 spatial streams to keep users and devices connected while the built-in TPM, WPA3, and wireless access control lists keep your network secure. Setting up guest and employee networks is just a few taps away on the Aruba Instant On mobile app. The Smart Mesh and a range-extending feature in the mobile app combined with automatic beamforming provide coverage to those hard-to-reach areas of your business.

We know the critical role that Wi-Fi plays in business today - no one can afford downtime. The Aruba Instant On Wi-Fi 6 family is designed for rapid deployment and simplified management. Be it mounting hardware, remote device management, or access to the latest business-grade software, the Aruba Instant On Wi-Fi 6 hardware makes it easy to set up and manage a high-performance network.

Specifications
Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: S0J34A
Manufacturer Website Address: http://www.hpe.com
Brand Name: Aruba
Product Line: Instant On
Product Model: AP22D
Product Name: Instant On AP22D Wireless Access Point
Package Type: Retail
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ax
Network Band: Dual Band
Frequency Band:

• 2.40 GHz
• 5 GHz

Total Number of Antennas: 2
Indoor/Outdoor: Indoor
Wireless Transmission Speed: 1.77 Gbit/s
MIMO Technology: Yes
MIMO Type: Multi User MIMO
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WPA2
• WPA3

Interfaces/Ports
Ethernet Technology:

• 2.5 Gigabit Ethernet
• Gigabit Ethernet

Number of Network (RJ-45) Ports: 5
PoE (RJ-45) Port: Yes
PoE PD Port: Yes
Network & Communication
Wi-Fi Generation: Wi-Fi 6
Communication Protocols:

• PPPoE
• DHCP
• RADIUS

Power Description
Power Consumption: 50 W
Physical Characteristics
Form Factor:

• Ceiling Mountable
• Wall Mountable
• Box Mount
• Desktop

Height: 150 mm
Width: 86 mm
Depth: 47 mm
Weight (Approximate): 360 g
Miscellaneous
Package Contents:

• Instant On AP22D Wireless Access Point
• Aruba Instant On Quick Start Guide
• Combined Ceiling and Wall Rail Mount Clip
• Ethernet Cable
• Desktop Mount
• DC Power Adapter

Certifications & Standards:

• 802.3at
• 802.3bt

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Additional Warranty Information:

2-year hardware warranty, 90-day phone and chat install support
