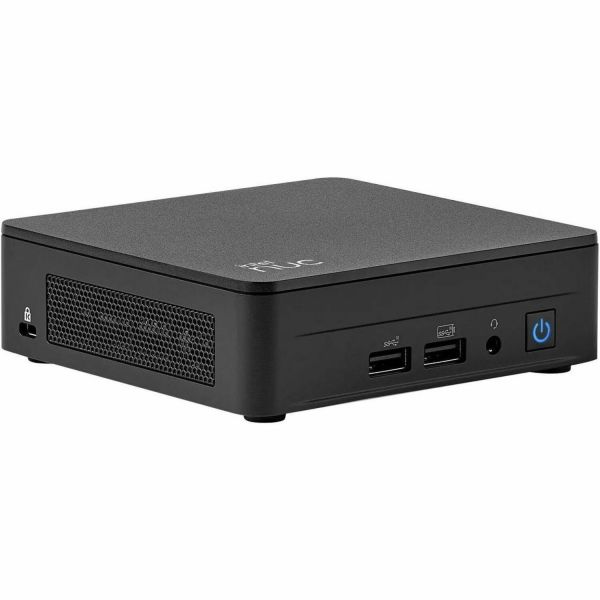

Asus NUC 13 Pro NUC13L5KI3 Barebone System

Marketing Information

NUC 13 Pro: The Right Size for Modern Business

• Get the latest in business performance with 13th Gen Intel® Core™ processors featuring up to 14 cores (6P+8E) and up to 64GB dual-channel memory
• For professional-grade performance, the 13th Gen Intel Core™i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel® Smart Cache, and 35W TDP
• Businesses get the fast memory they need with up to 64GB dual-channel DDR4-3200 SODIMMs
• Wired and wireless connections are lightning fast with up to a 2.5 Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
• Dual HDMI 2.1 and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displ...ays

Business Driver. Space Saver.

NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.

It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro^®Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.

The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.

To provide an eco-friendly foundation for businesses, NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90AR0081M00010
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus
Product Line: NUC 13 Pro
Product Model: NUC13L5KI3
Product Name: NUC 13 Pro NUC13L5KI3 Barebone System
Product Type: Barebone System
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Socket: Socket BGA-1744
Processor Type: Core i3
Processor Generation: 13th Gen
Processor Model: i3-1315UE
Processor Core: Hexa-core (6 Core)
Processor Speed: 1.20 GHz
Maximum Turbo Speed: 4.50 GHz
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Memory
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-3200/PC4-25600
Total Number of Memory Slots: 2
Intel Optane Memory Ready: No
Storage
Supported Storage Drive Interfaces: PCI Express
Supported Storage Drive Types: SSD
Controllers
Controller Type:

• NVMe
• Serial ATA

Display & Graphics
Graphics Controller Model: UHD Graphics
Graphics Memory Technology: DDR4 SDRAM
Graphics Memory Accessibility: Shared
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3
I/O Expansions
Number of M.2 Interfaces: 2
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 7
Number of USB 3.2 Ports: 3
Number of Onboard USB 2.0 Ports: 3
Network (RJ-45): Yes
DisplayPort: Yes
Number of Thunderbolt 4 Ports: 2
Operating System
Operating System Supported:

• Windows 10 IoT Enterprise
• Red Hat Linux
• Ubuntu Linux

Physical Characteristics
Height: 37 mm
Width: 112 mm
Depth: 117 mm
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
