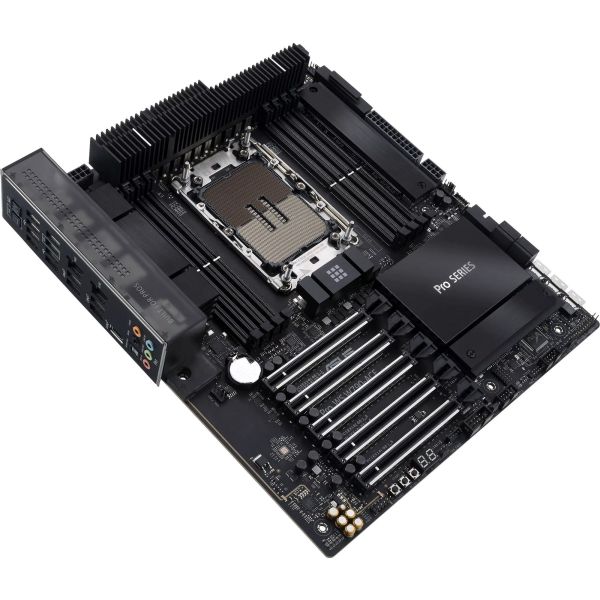

Asus PRO WS W790-ACE Desktop Motherboard

Marketing Information

Performance, Productivity, Proven

The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.

ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassi...s, PSU and other devices. Learn more about the Qualified Vendor List.

Low-profile professionalism

With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS W790-ACE presents a professional, low-profile look for content creators.

Multi-GPU support

The Pro WS W790-ACE features five PCIe 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling, simulation and rendering applications.

Reliability with supreme memory overclocking

The Pro WS W790-ACE supports 4-channel 2DPC DDR5 RDIMM ECC memory, allowing automatically to detect and correct data corruption, reducing the chance of system crashes. Being infused with deliberate memory trace layout, this motherboard enables DDR5 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: PRO WS W790-ACE
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus
Product Series: PRO
Product Model: PRO WS W790-ACE
Product Name: PRO WS W790-ACE Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: W790
Total Processor Supported: 1
Processor Socket: Socket LGA-4677
Processor Supported: Xeon
Memory
Number of Memory Slots: 8
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 2 TB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 6800 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5800 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 5000 MHz
• 4800 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 10
• 1
• 0
• 5

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 5
PCI Express Standard: PCI Express 5.0
Total Number of PCI Express Slots: 5
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 13
Number of USB 3.2 Gen 2 Type-A Ports: 4
S/PDIF: Yes
Number of Network (RJ-45) Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: SSI CEB
Width: 317.5 mm
Depth: 266.7 mm
