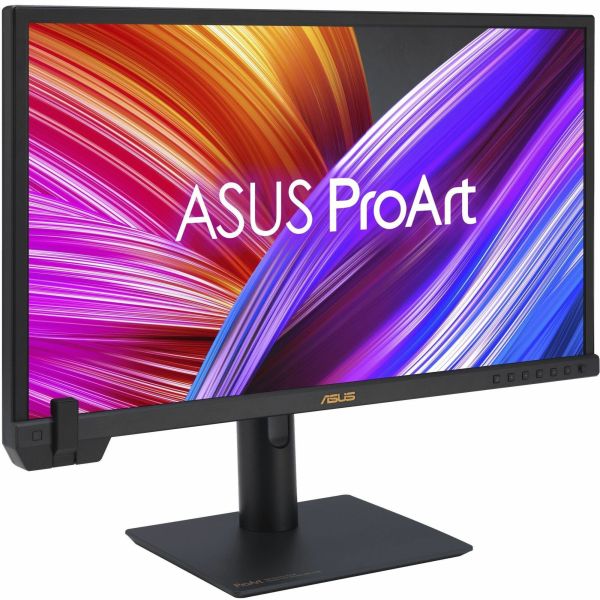

Asus ProArt PA24US Widescreen LED Monitor

Marketing Information

ProArt Display PA24US is 23.6-inch 4K HDR monitor offers 187 high PPI IPS panel with 99% Adobe RGB and 95% DCI-P3 coverage to deliver highly accurate colors that bring out the finest details in your creations. 12G-SDI input can receive video signals up to 4K@60Hz and up to quad-view at same time. A built-in motorized flip colorimeter for auto / self calibration to ensure professional-grade color accuracy. 600 nits peak brightness with multiple HDR format support provides creators with the ideal platform for working HDR content.

Digital Imaging Technician (DIT)

Needs a hi-quality SDI monitor for on-set quick color grading and managing production workflow. It can provide precise and true color reproduction and details from... camera and present to director/customers.

Colorists

12G-SDI input connection let creators who using SDI PCIe capture cards or capture boxes can be directly connect to the PA24US via SDI instead of HDMI, delivers 4K high quality uncompressed videos to preview precise image performance.

Filmmakers & Video Editors

An ultra-high-resolution with wide-color-gamut monitor performance is a must-have tool for 4K HDR video production. Factory pre-calibration ensures industry-leading color fidelity, and a wide color gamut and Delta E < 1 color difference ensures outstanding color accuracy.

Impeccable 4K HDR Imagery On-set | Uncompressed 4K Video | Uncompressed 4K Video

23.6-inch with 4K UHD (3840 x 2160) panel delivers four times the pixel density and three times more onscreen space than similarly sized FHD displays, resulting in sharper visuals with greater levels of detail.

ProArt Display PA24US features 12G-SDI connection, allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.

High Dynamic Range

ProArt Display PA24US features up to 600 nits of brightness, also passed VESA DisplayHDR 600 certification. Multiple HDR format supports HDR-10 / HLG high dynamic range technology for brighter whites and darker blacks, resulting in a rich and lifelike viewing experience.

Self Calibration

ProArt Displays now boasts an innovative self-calibration feature for the embedded colorimeter. The self-calibration is a standalone solution without any software and compatible with any operating system. You can directly complete the color calibration and scheduled color calibration functions through the OSD operation of ProArt Display. With this flexibility, you can achieve color consistency anytime and anywhere.

ProArt Calibration

ASUS ProArt Calibration technology saves all color parameter profiles on the ProArt monitor's internal scaler IC chip, instead of on the PC. The monitor can be calibrated and the look-up table subsequently rewritten, allowing users to connect it to devices with different operating systems or applications without needing to adjust settings.

ProArt Color Center

ProArt Color Center offers remote group control and calibration tools, allowing you to handle these vital tasks from a centralized location. You'll be able to remote control & group calibration, scheduled calibration and customized color parameters to maintain professional-level accuracy and consistency all the time.

Seamless Calibration

ProArt Displays are compatible with most major calibrators, including those from X-Rite, Datacolor and Klein. They also work seamlessly with Calman and Light Illusion ColourSpace CMS professional hardware calibration software.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: PA24US
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus
Product Line: ProArt
Product Model: PA24US
Product Name: ProArt PA24US Widescreen LED Monitor
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 24"
Viewable Screen Size: 59.9 cm (23.6")
Screen Mode: 4K UHD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 5 ms
Response Time Details: 5 ms GTG
Aspect Ratio: 16:9
Pixel Pitch: 0.13500 mm x 0.13500 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Wall Mountable
Backlight Technology: LED
HDCP Supported: Yes
Features:

• Anti-glare
• sRGB
• HDR10
• Flicker-free
• Trace Free Technology
• 6-axis Color Adjustment
• Hardware Calibration
• ProArt Palette
• QuickFit Plus
• Picture in Picture
• Picture by Picture
• Low Blue Light
• Multiple HDR Mode
• Ambient Light Sensor
• Cable Lock Slot
• VESA DisplayHDR 600
• Ergonomic Design
• Wide Color Gamut (sRGB)
• Wide Viewing Angle
• High Dynamic Range (HDR)
• Eco Mode

Horizontal Frequency: 15 kHz to 135 kHz
Vertical Frequency: 48 Hz to 60 Hz
Stand Adjustments:

• Swivel
• Height
• Pivot
• Tilt

Active Display Area (H x V): 522.40 mm x 293.80 mm
Video
Maximum Resolution: 3840 x 2160
Colour Supported: 1.073 Billion Colors
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 1,000,000:1
Brightness: 600 cd/m²
Tearing Prevention Technology: Adaptive Sync
Color Gamut:

• 100% sRGB
• 99% Adobe RGB
• 95% DCI-P3

Pixel Per Inch (PPI): 187
Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
HDMI: Yes
HDMI Version: 2.0
USB: Yes
DisplayPort: Yes
USB Type-C: Yes
Total Number of HDMI Ports: 2
Number of USB Ports: 3
Number of DisplayPorts: 1
Total Number of USB Type-C Ports: 1
Number of HDMI 2.0 Ports: 2
Built-in Devices
Built-in Devices: USB Hub
Power Description
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 346 mm
Width: 549 mm
Depth: 63 mm
Height with Stand: 521 mm
Width with Stand: 549 mm
Depth with Stand: 190 mm
Weight (Approximate): 4.30 kg
Weight with Stand (Approximate): 6 kg
Miscellaneous
Energy Star: Yes
