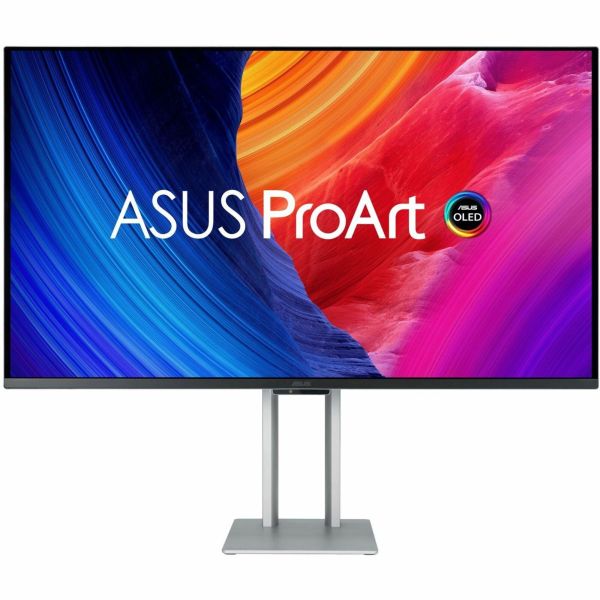

Asus ProArt PA32UCDM Widescreen OLED Monitor

Marketing Information

ASUS ProArt Display OLED PA32UCDM Professional Monitor - 32-inch (31.5 inch viewable), 4K UHD (3840 x 2160), QD-OLED, Ultra-slim, 240Hz, 0.1ms, Auto Calibration, HDR-10, HLG, Dolby Vision, 99% DCI-P3, E < 1, Thunderbolt™ 4 PD 96W, Calman Ready, ColourSpace Integration, Ergonomic Stand, Green Sustainability

• 31.5-inch 4K UHD (3840 x 2160) QD-OLED panel with 240 Hz refresh rate and 0.1 ms (GTG) response time for smooth rendering
• 1000 nits peak brightness with VESA DisplayHDR™ True Black 400 for exceptional color contrast
• ...enteditable="false">True 10-bit color depth and Quantum Dot technology provide 100% sRGB, 99% DCI-P3 and BT. 2020 color gamut
• World-leading ∆E < 1 color performance and ASUS ProArt Hardware Calibration Technology for color-accuracy optimization and color profile write-back
• Multiple HDR format support, including Dolby Vision^®, HLG and HDR10
• Rich connectivity including dual Thunderbolt™ 4 up to 96W Power Delivery with daisy-chaining, HDMI2.1 and a built-in USB Hub
• Ergonomic design with tilt, pivot and height adjustments for a comfortable viewing experience
• Green Sustainability: paper packaging and energy-efficient environmental standards

ProArt Display OLED PA32UCDM is a professional monitor designed for professional content creators. This 31.5-inch 4K HDR display boasts a cutting-edge 1000-nits QD-OLED panel with 99% DCI-P3 gamut, ensuring highly-accurate colors and exceptionally-detailed visuals. Its up to 240Hz refresh rate enables creators to develop fast-rendering games and perform artwork quality checks on a single display. Additionally, support for multiple HDR format makes PA32UCDM the perfect monitor for working on fast-moving HDR content.

Ideal for Game Development and Video Editing

PA32UCDM offers up to a 240Hz refresh rate and features variable-refresh-rate (VRR) technology to allow creators to work on fast-rendering visuals and conduct quality checks-all on a single display. HDMI® 2.1 with 4K@240Hz support results in supersmooth visuals with exceptional levels of detail.

ProArt Hardware Calibration

ASUS ProArt Hardware Calibration software works in both SDR and HDR modes. It saves all color parameter profiles directly on the ProArt monitor's internal scaler IC chip instead of the PC. Users can also use ProArt Calibration to schedule regular calibration intervals.

ProArt Color Center

ProArt Color Center is an online tool designed to help administrators manage the color accuracy of multiple ProArt displays that feature hardware calibration support. Users can check when the monitors were last calibrated, next recommended calibration date, and schedule calibration times for multiple monitors―even if they're using different color parameters and/or situated in different locations.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: PA32UCDM
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus
Product Line: ProArt
Product Model: PA32UCDM
Product Name: ProArt PA32UCDM Widescreen OLED Monitor
Product Type: OLED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 32"
Viewable Screen Size: 80 cm (31.5")
Screen Mode: 4K UHD
Panel Technology: Quantum Dot OLED
Quantum Dot Technology: Yes
Response Time: 0.10 ms
Response Time Details: 0.1ms GTG
Aspect Ratio: 16:9
Pixel Pitch: 0.18200 mm x 0.18200 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Mount Type: Wall Mountable
Backlight Technology: Quantum Dot OLED
HDCP Supported: Yes
Features:

• Anti-reflective
• sRGB
• HDR10
• Hybrid Log Gamma (HLG)
• Dolby Vision
• Flicker-free
• Color Temperature Selection
• Hardware Calibration
• ProArt Palette
• QuickFit Plus
• Picture by Picture
• Picture in Picture
• DisplayWidget Center
• Low Blue Light
• Multiple HDR Mode
• Ambient Light Sensor
• Proximity Sensor
• Kensington Lock
• VESA DisplayHDR True Black 400
• Calman Ready
• Ultra Slim
• Ergonomic Design
• Brightness Uniformity Function
• On-screen Display (OSD)
• MultiScreen

Horizontal Frequency:

• 15 kHz to 583 kHz - HDMI
• 15 kHz to 583 kHz - USB Type C

Vertical Frequency:

• 48 Hz to 240 Hz - HDMI
• 48 Hz to 240 Hz - USB Type C

Adjustable Stand: Yes
Stand Adjustments:

• Height
• Pivot
• Tilt

Stand Included: Yes
Active Display Area (H x V): 699.40 mm x 394.70 mm
Video
Maximum Resolution: 3840 x 2160
Colour Supported: 1073.7 Million Colors (10-bit)
Dynamic Contrast Ratio: 1,500,000:1
Brightness: 1000 cd/m²
Tearing Prevention Technology: Adaptive Sync
Color Gamut:

• 100% sRGB
• 99% DCI-P3

Pixel Per Inch (PPI): 140
Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
HDMI: Yes
HDMI Version: 2.1
USB: Yes
Thunderbolt: Yes
USB Type-C: Yes
Total Number of HDMI Ports: 1
Number of USB Ports: 2
Thunderbolt 4: Yes
Number of USB Type-A 3.2 Gen 2 Downstream Ports: 1
Number of USB Type-C 3.2 Gen 2 Downstream Ports: 1
Number of HDMI 2.1 Ports: 1
Built-in Devices
Built-in Devices: USB Hub
Power Description
Frequency:

• 50 Hz
• 60 Hz

Physical Characteristics
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Height: 422.3 mm
Width: 717.3 mm
Depth: 42.4 mm
Height with Stand: 602.50 mm
Width with Stand: 717.30 mm
Depth with Stand: 228 mm
Weight (Approximate): 6.50 kg
Weight with Stand (Approximate): 9 kg
Miscellaneous
Energy Star: Yes
