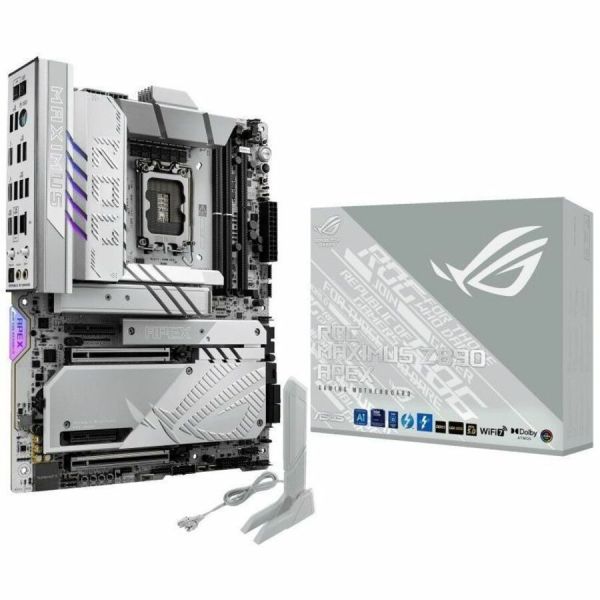

Asus ROG MAXIMUS Z890 APEX Desktop Motherboard

Marketing Information

ROG Maximus Z890 APEX

The ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (Series 2). Precision-engineered for supreme overclocking, it carries the legacy of the series forward into a new generation. With exceptional power delivery and a two-slot DDR5 memory layout, overclockers can meet and exceed their ambitions for record-breaking CPU and memory performance. For those who favor lighter colors for the aesthetics of their build, the ROG Maximus Z890 Apex features a cobble-gray surface, polished metallic accents, sleek contours and a predominantly silver palette.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize netwo...rk performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

AI OVERCLOCKING

Tuning is now faster and smarter than ever before.

AI COOLING II

Balance the thermals and acoustics of any build with a single click.

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

Performance OVERCLOCKING | NPU BOOST

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Performance MEMORY | DDR5 DOMINATION

Thanks to improved signal routing, now enthusiast-grade kits can be driven beyond the 9 GT/s mark on the ROG Maximus Z890 Apex.

DIMM FIT

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues.

AEMP III

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory.

DIMM FLEX

DIMM Flex employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB1IP0-M0EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus ROG
Product Line: Maximus Z890 Apex
Product Name: MAXIMUS Z890 APEX Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: Z890
Total Processor Supported: 1
Processor Socket: Socket LGA-1851
Processor Supported: Core Ultra
Memory
Number of Memory Slots: 2
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 96 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 9600 MHz
Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
I/O Expansions
Total Number of Expansion Slots: 4
PCI Express Standard:

• PCI Express 4.0
• PCI Express 5.0

Total Number of PCI Express Slots: 4
Number of PCI Express x4 Slots: 2
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 11
S/PDIF: Yes
VGA: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 6
Total Number of Onboard USB Ports: 10
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Color Family: Dual Colour
Product Color:

• Black
• White

Form Factor: ATX
Width: 305 mm
Depth: 244 mm
Miscellaneous
Package Contents:

• MAXIMUS Z890 APEX Desktop Motherboard
• 1 x ROG DIMM.2 with heatsink
• 1 x M.2 pad for ROG DIMM.2
• 2 x M.2 screw package for ROG DIMM.2
• 1 x Thermal pad for M.2 22110
• 1 x ROG Memory Fan Kit
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 1 x ROG VIP card
• 3 x M.2 Q-Slide package
• 5 x M.2 backplate rubber packages
• 1 x ROG Bottle Opener
• 1 x USB drive with utilities and drivers
• 1 x Quick start guide

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• China Restriction of Hazardous Substances (China RoHS)
• Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
