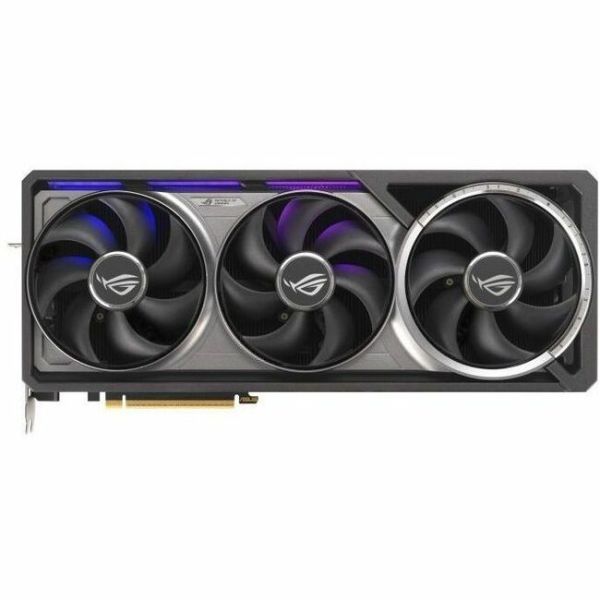

Asus ROG Astral GeForce RTX 5090 32GB GDDR7 OC Edition Graphic Card

Marketing Information

The Final Frontier

ROG Astral GeForce RTX™ 5090

The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5090 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations - amplified by an eye-catching die-cast frame and metal GPU bracket - combine to deliver absolute performance... that can handle even the most demanding gaming scenarios.

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

- Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

- New Streaming Multiprocessors

Optimized for neural shaders

- Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

Quad-Fan Force

Cooling Expertise

A revolutionary four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in premium thermal performance that dramatically lowers GPU temperatures and minimizes hotspots, enabling unprecedented clock speeds.

Optimized Fin Spacing

The addition of a fourth fan permits more densely packed heatsink fins, increasing cooling potential.

Patented Vapor Chamber

A patented vapor chamber designed with milled pathways allows eight heatpipes to sink in without flattening, boosting heat dissipation efficiency. This innovative combo maximizes contact surface and improves thermal performance by over 10%.

MaxContact Design

MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad

By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Premium Power Delivery

Unmatched Reliability

Powerful 80-amp MOSFETs deliver over 35% more headroom than the standard design. This helps ensure enhanced performance, stability and higher overclocking potential.

ASUS GPU Guard & Bracket

ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating

A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90YV0LW0-M0NA00
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus ROG
Product Line: Astral
Product Model: ROG-ASTRAL-RTX5090-O32G-GAMING
Product Name: Astral GeForce RTX 5090 32GB GDDR7 OC Edition Graphic Card
Product Type: Graphic Card
Technical Information
API Supported: OpenGL 4.6
Number of Monitors Supported: 4
Features: Quad-fan Cooler
Maximum Digital Display Resolution: 7680 x 4320
CUDA Cores: 21760
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: NVIDIA
Chipset Line: GeForce
Chipset Series: RTX
Chipset Model: RTX 5090
GPU Boost Clock: 2.61 GHz
Memory
Standard Memory: 32 GB
Memory Technology: GDDR7
Bus Width: 512 bit
Interfaces/Ports
Host Interface: PCI Express 5.0
DisplayPort: Yes
Number of DisplayPort Outputs: 3
HDMI: Yes
Number of HDMI Outputs: 2
Power Description
Power Supply Wattage: 1 kW
Power Connector: 1x 16-pin
Physical Characteristics
Slot Space Required: Quad
Form Factor: Plug-in Card
Cooler Type: Fan Cooler
Height: 76 mm
Width: 149.3 mm
Length: 357.6 mm
Weight (Approximate): 1 kg
Miscellaneous
Platform Supported: PC
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
