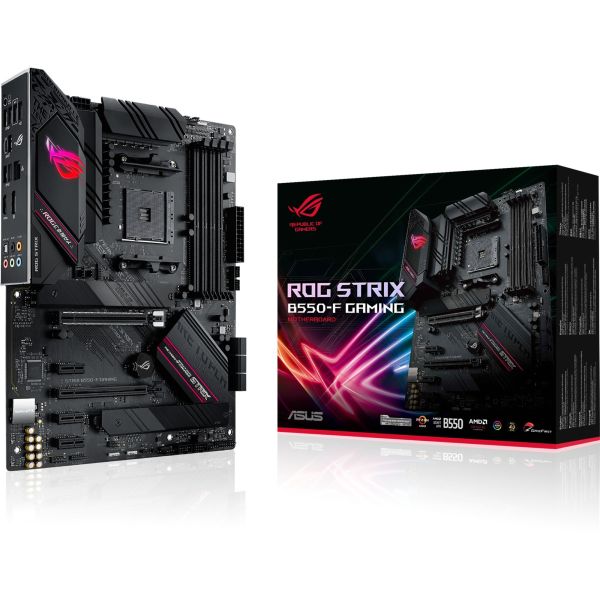

Asus ROG Strix B550-F GAMING Desktop Motherboard

Marketing Information

ROG STRIX B550-F GAMING

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build.

Advance Your Gaming Immersion

ROG Strix B550-F Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the su...btlest of cues for a completely immersive gaming experience.

PCIe 4.0-Ready

ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

All-round Performance

ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory - so it has everything you need to load up your build with high-performance components for playing in the big leagues.

Play Your Own Style

The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.

UNDENIABLY ROG STRIX

ROG Strix B550-F Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.

ROG Gives You More

ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

When you're ready for a deeper dive into the configuration of your system, delve into the UEFI's Advanced mode and take complete control. Each section is intuitively organized, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you're ready to take charge, parameters have the granularity to dial in performance just the way you want.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB14S0-M0EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus ROG
Product Line: Strix
Product Model: B550-F GAMING
Product Name: Strix B550-F GAMING Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B550
Total Processor Supported: 1
Processor Socket: Socket AM4
Processor Supported:

• Ryzen 3
• Ryzen 5
• Ryzen 7
• Ryzen 9
• Ryzen 5 Pro
• Ryzen 7 PRO
• Ryzen 9 PRO

Multi GPU Supported: CrossFireX
Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported:

• 2133 MHz
• 2400 MHz
• 2667 MHz
• 2800 MHz
• 3000 MHz
• 3200 MHz
• 3466 MHz
• 3866 MHz
• 3600 MHz
• 4000 MHz
• 4133 MHz
• 4600 MHz
• 4800 MHz
• 5100 MHz
• 5000 MHz
• 4400 MHz

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 10
• 1

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
2.5Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 3
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 6
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 2
Physical Characteristics
Form Factor: ATX
Width: 304.8 mm
Depth: 243.8 mm
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
