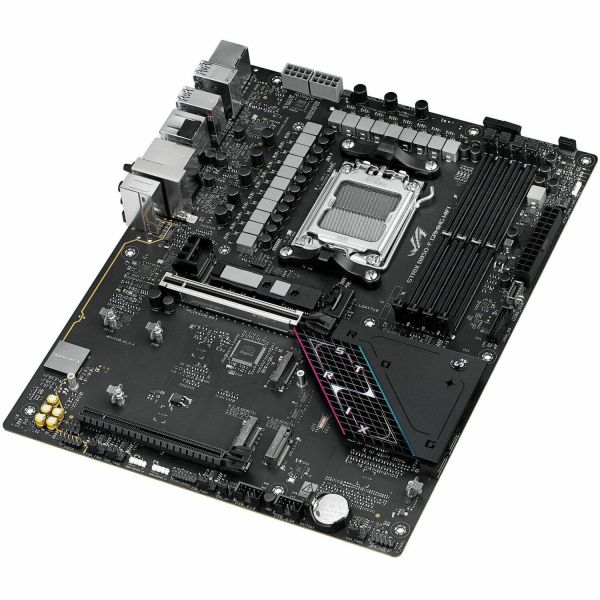

Asus ROG STRIX B850-F GAMING WIFI Gaming Desktop Motherboard

Marketing Information

ROG STRIX B850-F GAMING WIFI

The ROG Strix B850-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance. In addition, the total support of 19 USB ports including USB 20Gbps, as well as WIFI 7 and 2.5Gbps ethernet, provides cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications..

ASUS AIINTELLIGENCE | ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards... in a simple and straightforward way.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

Performance OVERCLOCKING | PBO ENHANCEMENT

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

Performance MEMORY | DDR5 DOMINATION

The Strix B850-F is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.

AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB1J70-M0EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus ROG
Product Line: Strix
Product Model: B850-F GAMING WIFI
Product Name: STRIX B850-F GAMING WIFI Gaming Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: B850
Processor Socket: Socket AM5
Processor Supported:

• Ryzen 9
• Ryzen 8
• Ryzen 7

Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 256 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 8000 MHz
Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
I/O Expansions
Total Number of Expansion Slots: 3
PCI Express Standard:

• PCI Express 5.0
• PCI Express 4.0

Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 12
S/PDIF: Yes
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 304.8 mm
Depth: 243.8 mm
Miscellaneous
Package Contents:

• STRIX B850-F GAMING WIFI Gaming Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x M.2 Q-Slide package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 4 x M.2 rubbers
• 1 x Quick start guide

Brand Compatibility: AMD
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
