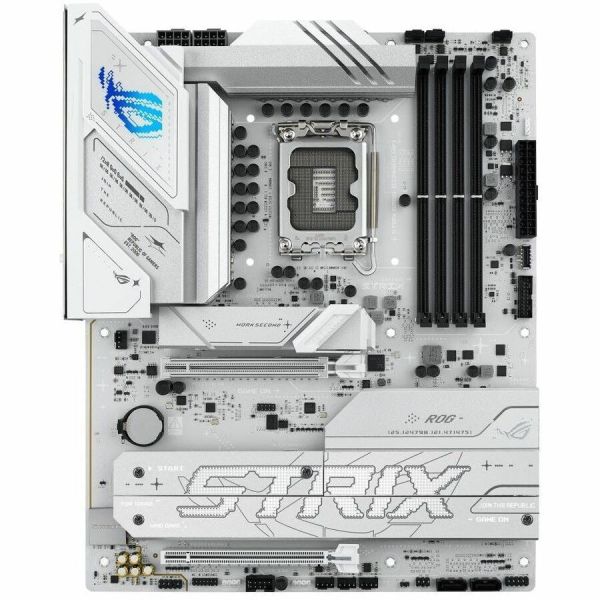

Asus ROG STRIX B860-A GAMING WIFI Gaming Desktop Motherboard

Marketing Information

ROG STRIX B860-A GAMING WIFI

With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4^®(20Gbps) port, PCIe^®5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.

ASUS AI INTELLIGENCE | ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI NETWORKING II

AI Networking II combines intellig...ent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

Performance OVERCLOCKING | NPU BOOST

The integrated NPU in Intel® Core Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Asynchronous Clock

For next-level frequency flexibility, the ROG Strix B860-I features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.

Separate CPU BCLK from other domains for unfettered overclocking.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB1JI0-M0EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus ROG
Product Line: Strix
Product Model: B860-A GAMING WIFI
Product Name: STRIX B860-A GAMING WIFI Gaming Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: B860
Total Processor Supported: 1
Processor Socket: Socket LGA-1851
Processor Supported: Core Ultra
Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 256 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 8600 MHz
• 9066 MHz

Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
I/O Expansions
Total Number of Expansion Slots: 2
PCI Express Standard:

• PCI Express 5.0
• PCI Express 4.0

Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 10
Number of USB4 Ports: 1
S/PDIF: Yes
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Thunderbolt: Yes
Number of Thunderbolt 4 Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Physical Characteristics
Color Family: White
Product Color: White
Form Factor: ATX
Width: 304.8 mm
Depth: 243.8 mm
Miscellaneous
Package Contents:

• STRIX B860-A GAMING WIFI Gaming Desktop Motherboard
• 2 x SATA 6Gb/s Cables
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable Flies Package
• 1 x M.2 Q-Latch
• 1 x M.2 Q-Slide
• 1 x ROG Key Chain
• 1 x ROG Strix Stickers
• 4 x M.2 Rubbers
• 1 x Quick Start Guide

Brand Compatibility: Intel
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
