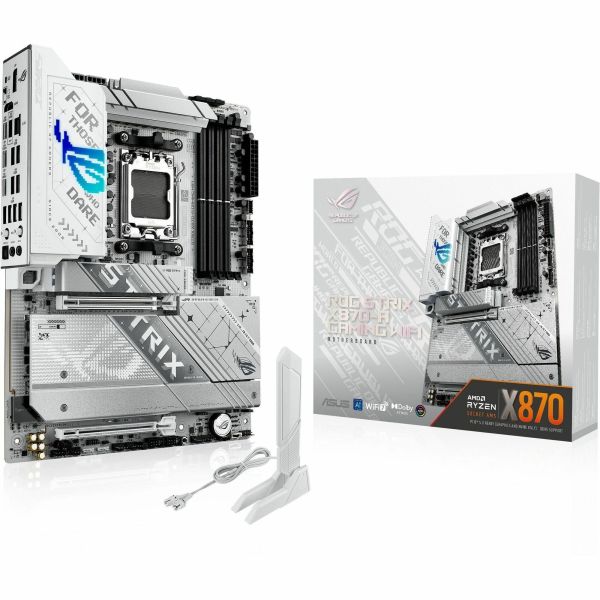

Asus ROG Strix X870-A GAMING WIFI Gaming Desktop Motherboard

Marketing Information

ROG STRIX X870-A GAMING WIFI

Elevate your build with the ROG Strix X870-A Gaming WiFi. Featuring a sleek white PCB and support for AMD Ryzen™ 9000 Series processors, this motherboard delivers the power and connectivity needed for advanced AI applications. With DDR5 support, full PCIe 5.0 capabilities, dual USB4^®ports, and WiFi 7, it's the ultimate blend of style and performance.

ASUS AI INTELLIGENCE | AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limi...ts. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

AI COOLING II

Balance the thermals and acoustics of any build with a single click.

AI COOLING II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.

Performance OVER CLOCKING | Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

PBO ENHANCEMENT

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

Performance MEMORY | DDR5 DOMINATION

The Strix X870-A is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.

DDR5 Strength

For those who want to fly past stock DDR5 speeds, the Strix X870-A is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB1IF0-M0EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus ROG
Product Line: Strix
Product Model: X870-A GAMING WIFI
Product Name: Strix X870-A GAMING WIFI Gaming Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: X870
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported:

• Ryzen 7
• Ryzen 8
• Ryzen 9

Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 8000 MHz
Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
I/O Expansions
Total Number of Expansion Slots: 3
PCI Express Standard:

• PCI Express 5.0
• PCI Express 4.0

Total Number of PCI Express Slots: 3
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 12
S/PDIF: Yes
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
Form Factor: ATX
Width: 305 mm
Depth: 244 mm
Miscellaneous
Package Contents:

• Strix X870-A GAMING WIFI Gaming Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2 22110
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x M.2 Q-Slide package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 4 x M.2 rubber packages
• 1 x Quick start guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
