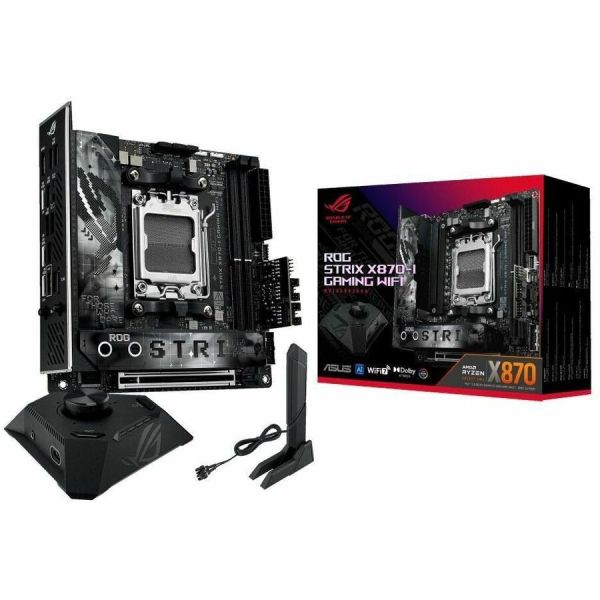

Asus ROG Strix X870-I GAMING WIFI Gaming Desktop Motherboard

Marketing Information

ROG STRIX X870-I GAMING WIFI

The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor, enhanced by the ROG Strix Hive II for streamlined control. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.

Extreme Power & Performance

ASUS AI INTELLIGENCE

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooli...ng to predict the optimal configuration and push the system to its limits.

AI Cooling II

Balance the thermals and acoustics of any build with a single click.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7

Performance

OVERCLOCKING

Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

PBO ENHANCEMENT

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB1IW0-M0EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus ROG
Product Line: Strix
Product Model: X870-I GAMING WIFI
Product Name: Strix X870-I GAMING WIFI Gaming Desktop Motherboard
Packaged Quantity: 1
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: AMD
Chipset Model: X870
Total Processor Supported: 1
Processor Socket: Socket AM5
Processor Supported:

• Ryzen 7
• Ryzen 8
• Ryzen 9

Memory
Number of Memory Slots: 2
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 96 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 8000 MHz
• 8400 MHz
• 8600 MHz

Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 10

Video
Onboard Video: CPU Dependent Video
Network & Communication
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.4
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11be
I/O Expansions
Total Number of Expansion Slots: 2
PCI Express Standard:

• PCI Express 5.0
• PCI Express 4.0

Total Number of PCI Express Slots: 2
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 10
VGA: Yes
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Onboard Interfaces
Number of SATA Interfaces: 2
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 3
Physical Characteristics
Form Factor: Mini ITX
Width: 170 mm
Depth: 170 mm
Miscellaneous
Package Contents:

• Strix X870-I GAMING WIFI Gaming Desktop Motherboard
• 1 x Panel cable
• 1 x ROG USB2.0 splitter cable
• 2 x SATA 6Gb/s cables
• 1 x ROG FPS Card
• 1 x ROG STRIX HIVE II
• 1 x USB Type-C power connection cable
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package(s)
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x M.2 rubber package(s)
• 1 x Quick start guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
