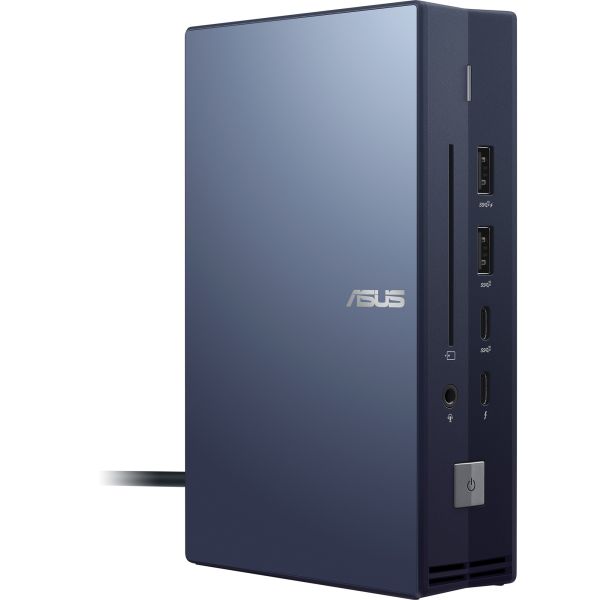

Asus SimPro Dock 2

Marketing Information

ASUS SimPro Dock 2 is a sleek, compact one-stop dock that streamlines laptop connectivity. Attach your laptop via a single cable and it's powered, connected to your network and peripherals, and is primed for multitasking across up to four monitors - including an up to 8K display. It also has an integrated smart card reader for a diverse array of business. Simply, SimPro Dock 2 keeps your desk neat, tidy and organized while setting you up for work in the blink of an eye.

Productivity | One cable, unlimited possibilities

With extensive connectivity and compatibility with a broad range of both ASUS and other laptops, SimPro Dock 2 is the easy way to connect to extra data, power, peripherals, security and management tools. J...ust link to your laptop via a single USB-C cable and it's instantly hooked up to your customized computing environment.

Advanced networking, management and security

Apart from connecting to wired network easily, SimPro Dock 2 helps facilitate your company's IT management and keep your information safe and productivity high, with MAC address pass-through, remote port-disablement and Wake-on-LAN.

Loaded with connectivity

A total of five USB connections ensures easy connectivity and compatibility with a vast array of peripherals, including external hard drives, printers and scanners. SimPro Dock 2 also has Thunderbolt^™3 for ultrafast up to 40 Gbps data transfer speeds, fast charging and video output. There's even USB 3.2 Gen 2 Type-A that can fast-charge everyday devices, such as smartphones and tablets.

Smart card applications, empowered

With a built-in smart card reader, SimPro Dock 2 enables user authentication and security for a diverse array of business applications, from credit card-based financial transactions to identification verification for tax-filing purposes or access to personal data on government websites.

Power your day

SimPro Dock 2 supports up to 6A of power throughput for rapid charging, and has a built-in 0.6 m cable for quick, convenient connection to your laptop. It provides up to 120W power for compatible laptops, for improved power delivery and charging efficiency.

Maximize the workspace without bounds

Connect up to four displays at once, making it easier to manage multiple applications and extend your workspace. When attached to a laptop that supports Display Stream Compression (DSC), SimPro Dock 2 supports up to one 8K display- delivering crisp and detailed visuals. It also has DisplayPort^™1.4, HDMI^™2.0, traditional VGA connectivity, giving you the freedom to connect to also any display you need. As well, SimPro Dock 2's DisplayPort functionality includes support for Multi-Steam Transport (MST), allowing multiple displays to be connected to a single DisplayPort socket.

Design | Connectivity empowered

SimPro 2 Dock is loaded with diverse ports, slots and jacks, so it's ready to connect almost any device you need - today or tomorrow.

Connectivity | Your workspace, tidied

SimPro Dock 2 brings all those cables together, keeping your workspace neat and tidy. It's also a compact little device, occupying barely more space than a smartphone.

Reliability | One-button operation

Once connected, all it takes is one touch of the SimPro Dock 2 power button to fire up your laptop. The integrated LED lets you know when laptop's synced up, so you know when you're good to go.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90NX0460-P001B0
Manufacturer Website Address: http://uk.asus.com
Brand Name: Asus
Product Line: SimPro Dock 2
Product Name: SimPro Dock 2
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Scanner
• Printer
• Hard Drive
• Smartphone
• Notebook
• Tablet

Cable Length: 60 cm
Features: Smart Card Reader
Management Features:

• MAC Address Pass-through
• Wake-on-LAN

Number of Displays Supported: 4
Screen Mode Supported:

• Full HD
• 4K
• 8K

Supported Resolutions:

• 1920 x 1080
• 3840 x 2160
• 7680 x 4320

Maximum Data Transfer Rate: 5 GB/s
Security Slot Type: Kensington Security Slot
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Audio Line In: Yes
Audio Line Out: Yes
Total Number of USB Ports: 5
Number of USB 3.0 Ports: 4
Number of USB Type-A Ports: 3
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x Upstream port for computer side (TYPE C receptacle), 1 x Downstream port for computer side (Type C receptacle)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of Network (RJ-45) Ports: 1
VGA: Yes
Number of VGA Outputs: 1
Number of DisplayPorts: 2
DisplayPort: Yes
DisplayPort Version: 1.4
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
HDMI Version: 2.0
Power Description
Maximum Power Supply Wattage: 180 W
Power Source Type: Power Adapter
Physical Characteristics
Width: 99 mm
Depth: 161.5 mm
Weight (Approximate): 650 g
Miscellaneous
Kensington Security Slot: Yes
Compatibility:

Asus ExpertBook B9 Series Laptops:

• B9450FA
• B9450FAV
• B9400CEA
• B9400CEAV
• B9400CBA
• B9403CVA

Asus ExpertBook B7 Series Laptops:

• B7402FEA
• B7402FBA
• B7402FVA

Asus ExpertBook B6 Series Laptop:

• B6602FC2

Asus ExpertBook B5 Series Laptop:

• B5602FBN
• B5602FBA
• B5602CVN
• B5602CVA
• B5602CBN
• B5602CBA
• B5402FVA
• B5402FEA
• B5402FBA
• B5402CVA
• B5402CEA
• B5402CBA
• B5302CBA
• B5302FBA
• B5302CEA
• B5302FEA

https://www.asus.com/accessories/docks-dongles-and-cable/asus-docks-dongles-and-cable/asus-simpro-dock-2/techspec/

Brand Compatibility: Asus
Warranty
Limited Warranty: 3 Year
