ATEN DVI Dual View KVM Extender

Marketing Information

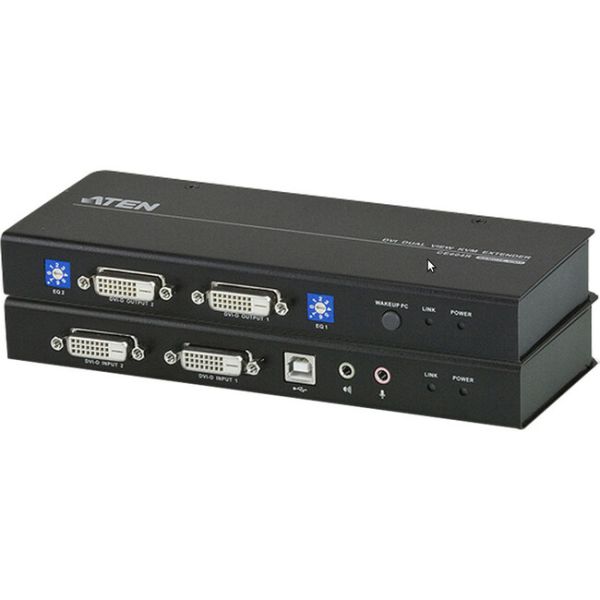

The CE604 is a DVI Dual View USB based KVM Extender that features Dual View functionality, which enables the video output to seamlessly display on two monitors. With RS-232 serial functionality, it allows access to a computer system from a remote console up to 60 m away. The CE604 is built for control and security purposes, and is targeted towards financial and industrial markets.

The CE604 is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices, such as touch screens and barcode scanners. In addition, it supports an advanced PC Wake Up feature, which allows you to simply press a pushbutton from the remote dual view console to wake a PC at the local site. The CE604 eliminates the need for t...raveling back and forth between the local computer and remote console, making it an effi cient and flexible solution.

More from the Manufacturer

Specifications
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: CE604
Manufacturer Website Address: http://www.aten.com
Brand Name: ATEN
Product Name: DVI Dual View KVM Extender
Product Type: KVM Console/Extender
Technical Information
Connectivity Technology: Wired
Number of Computers Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 60 m
Video
Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
USB: Yes
DVI: Yes
Headphone: Yes
Microphone: Yes
Number of Network (RJ-45) Ports: 4
Number of USB Ports: 3
Number of DVI Ports: 4
Physical Characteristics
Transmitter Height: 25 mm
Transmitter Width: 85.40 mm
Transmitter Depth: 202 mm
Receiver Height: 25 mm
Receiver Width: 87 mm
Receiver Depth: 202 mm
Transmitter Weight (Approximate): 480 g
Receiver Weight (Approximate): 480 g
