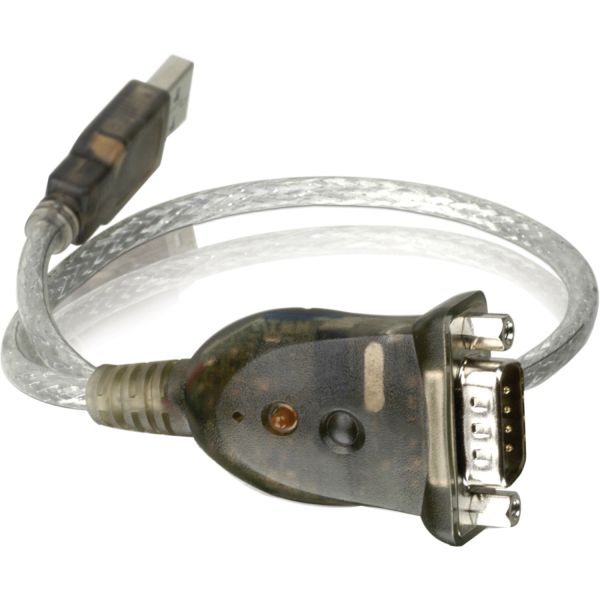

ATEN USB to RS-232 Converter

Marketing Information

The USB PDA/ Serial Adapter (UC232A) provides you with an external serial (DB- 9 male) Plug-n-Play connection for use with computers, notebooks, and hand held computing devices that support USB. The PDA/USB Serial Adapter has a standard type A USB plug. This USB PDA/Serial Adapter provides PDAs, digital cameras, modems, and ISDN terminal adapters with high quality serial connections at a data transfer rate of over 230Kbps. This makes the USB interface transparent to serial peripherals, allowing them to easily interface with USB computers. This eliminates the setup hassle found with traditional serial port connections. This device also supports energy saving suspend and resume operations. Package Content: 1 x UC 232A USB to serial adapter c...able, 1 x Software CD, 1 x Warranty Card

More from the Manufacturer

Specifications
Manufacturer: ATEN Technology, Inc
Manufacturer Part Number: UC232A
Manufacturer Website Address: http://www.aten.com
Brand Name: ATEN
Product Model: UC232A
Product Name: USB to RS-232 Converter
Packaged Quantity: 1
Package Type: Retail
Product Type: Data Transfer Cable
Technical Information
Cable Type: DB-9/USB
Cable Length: 39.62 cm
Connector Type on First End: USB 1.1 Type A - Male
Connector on First End Details: 1 x 4-pin USB 1.1 Type A - Male
Connector Type on Second End: DB-9 RS-232 Serial - Male
Connector on Second End Details: 1 x 9-pin DB-9 RS-232 Serial - Male
Conductor: Copper
Device Supported:

• Digital Camera
• PDA
• Cellular Phone
• Modem
• ISDN Termination Adapter

Data Transfer Rate: 921.6 kbit/s
Physical Characteristics
Weight (Approximate): 40.8 g
Miscellaneous
Additional Information:

• Support the RS232 Serial interface
• Support Remote wake-up and power management
• 96 bytes buffer each for upstream and downstream data flow
• Easy Installation
• Frees Your RS-232 Ports For Other Uses
• No IRQ Required
