AXIS Ex Connection Rail 4-port PoE MM
1053048963
£8,738.21
AXIS Ex Connection Rail 4-port PoE MM
AXIS Ex Connection Rail 4-port PoE MM is available to buy in increments of 1
Environment, key point: Not yet rated
Human, key point: Not yet rated
Animal, key point: Not yet rated
Social, key point: Not yet rated
Durability, key point: Not yet rated
Categories: Switches & Bridges, Default Category
| Layer Supported | 2 |
|---|---|
| Product Type | Ethernet Switch |
| Power Source | DC |
| Form Factor | Wall Mountable |
| Brand Name | AXIS |
| Ethernet Technology | Fast Ethernet |
| Product Family | Ex Connection Rail |
| Media Type Supported | Twisted Pair |
| Total Number of Network Ports | 4 |
| PoE (RJ-45) Port | Yes |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 01535-001
Manuf...acturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Line: Ex Connection Rail
Product Name: Ex Connection Rail 4-port PoE MM
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 4
Network (RJ-45): Yes
Port/Expansion Slot Details: 4 x Fast Ethernet PoE+
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology:
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.3at
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 120 W
Power Source: DC
Physical Characteristics
Form Factor: Wall Mountable
Height: 227 mm
Width: 289 mm
Depth: 289 mm
Weight (Approximate): 16 kg

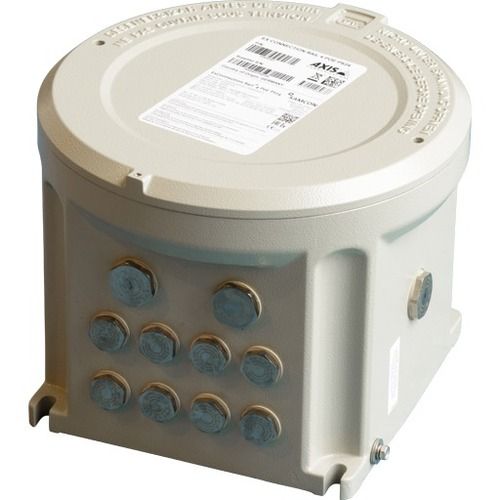

Ex Connection Rail 4-port PoE is a high-performance PoE switch and 24 V DC power supply for hazardous areas. It is designed to connect explosion-protected network cameras in the ExCam series over long distances. The network connection can be realized via optical fibers or copper-bound Ethernet.
The power supply can deliver 30 W per camera when additional heat is needed in sub-zero environments.
The Ex d-rated enclosure is made from seawater resistant copper free aluminum and ready for wall mounting.
Ex Connection Rail includes 2x M25x1.5 cable glands (Ex d).
Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 01535-001
Manuf...acturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Line: Ex Connection Rail
Product Name: Ex Connection Rail 4-port PoE MM
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 4
Network (RJ-45): Yes
Port/Expansion Slot Details: 4 x Fast Ethernet PoE+
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology:
- 10Base-T
- 100Base-TX
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.3at
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 120 W
Power Source: DC
Physical Characteristics
Form Factor: Wall Mountable
Height: 227 mm
Width: 289 mm
Depth: 289 mm
Weight (Approximate): 16 kg
